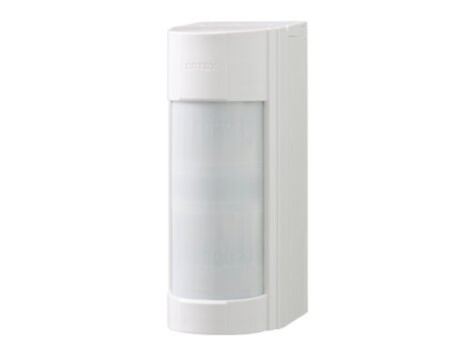

Optex VXI-AM outdoor detector | 2 × PIR | 12 m | anti-masking | IP55

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€198.00 €246

Pre-order

SKU

VXI-AM

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	None
Anti-masking	No
Kahesüsteemne	No
Sobib välipaigalduseks	No
Loomakindel	No

Toote kirjeldus

Optex VXI-AM is an outdoor motion detector of the VX Infinity series that protects the approach to a building up to 12 m. It is mounted at 0.8–1.2 m and has two PIRs forming a double-layered detection area – it only triggers when both layers are activated. Digital analysis reduces false alarms, double conductive shielding reduces the impact of sunlight and the housing is weather resistant (IP55). VXI-AM is the hardwired model with active infrared anti-masking; end-of-line resistors are optional.

Key features

Two PIRs, double-layered 12 m detection area (16 zones)
Animal tolerance, digital analysis
Active infrared anti-masking
End-of-line resistor option
Mounting height 0.8–1.2 m, IP55

Technical data

Detection method	Passive infrared
Detection coverage	12.0 m wide / 16 zones
Detectable speed	0.3 – 1.5 m/s
Power supply	9.5 – 18 VDC
Current draw	24 mA (max) at 12 VDC
Alarm period	2.0 ±1.0 s
Warm-up period	Approx. 60 s (LED blinks)
Alarm output	N.C. / N.O. Selectable 28 VDC 0.1 A (max)
Trouble output	N.C., 28 VDC 0.2 A max.
Tamper output	N.C., 28 VDC 0.1 A max.
Operating temperature	-30 – +60°C
Relative humidity	95% max.
Installation	Outdoor
Mounting height	0.8 - 1.2 m
Protection rating	IP55
Weight	500 g
