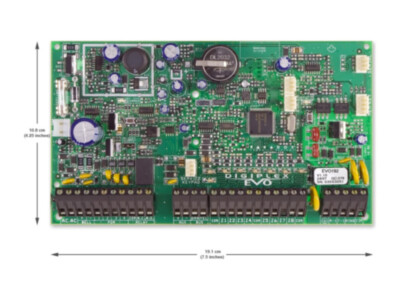

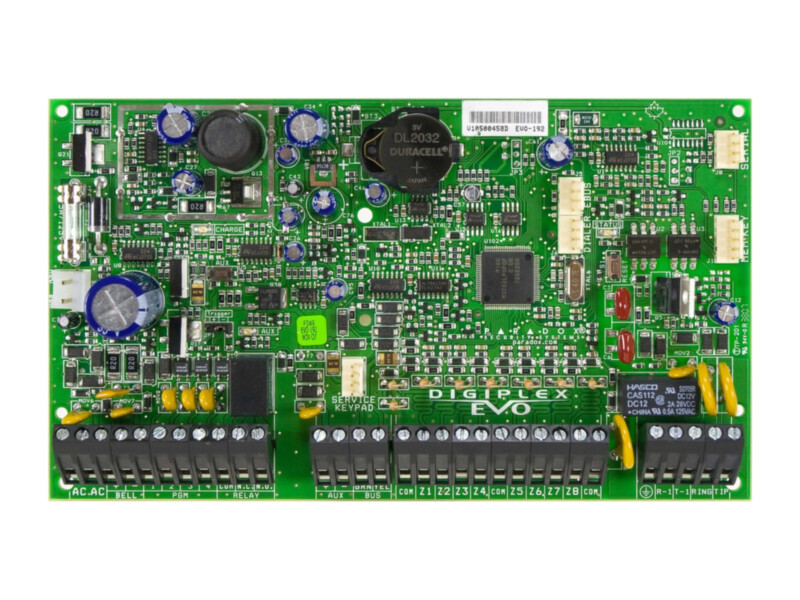

Paradox Digiplex EVO control panel | 8–192 zones | 8 partitions, 999 users | G3

The Digiplex EVO192 is Paradox's high-security control panel for banks, institutions, commercial buildings and homes that need strong protection. It has 8 on-board zones (16 with zone doubling), and up to 254 expansion modules can be connected anywhere on the 4-wire EVO bus, for up to 192 zones in total. Bus modules and detectors can be programmed remotely from a keypad or with the BabyWare software. Access control for up to 32 doors is built in and uses the same user database. PCS series cellular, IP150 internet and VDMP3 voice modules can be added for communication, and the firmware is upgradable in the field. According to Paradox, the panel complies with EN 50131 Grade 3.

Key features

• 8 on-board zones (16 with doubling), expandable to 192
• 8 partitions, 999 user codes, 3584 buffered events
• Up to 254 expansion modules on the EVO bus
• Access control for up to 32 doors
• 32 PGMs (5 on board), PGM1 usable as a 2-wire smoke input
• Supports PCS series, IP150 and VDMP3; in-field firmware upgrade
• EN 50131 Grade 3
