PoE power adapter POE-48/NX | 48 V DC | 24 W | passive PoE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€27.07 €34

Pre-order

SKU

POE-48-NX

Toote kirjeldus

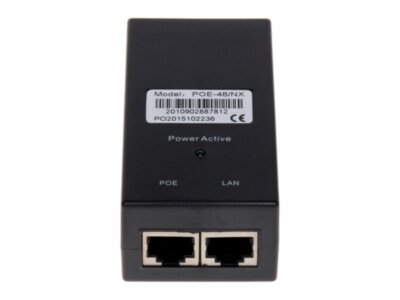

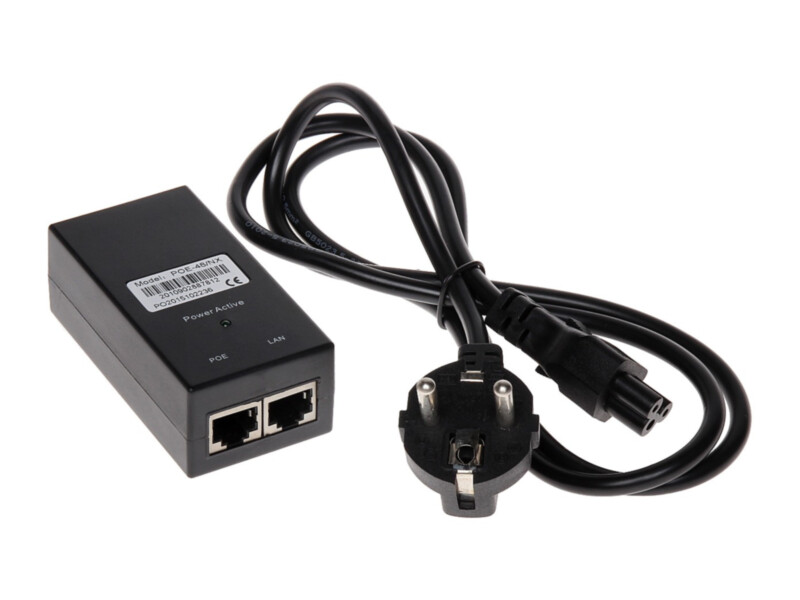

The POE-48/NX is a PoE power adapter for devices powered over the network cable: one twisted-pair cable carries both data and supply voltage. It has two RJ-45 sockets (data in and PoE out), a 48 V DC output and 24 W of power, with short-circuit and overload protection. Data runs on pins 1-2 and 3-6, power on 4-5 (+) and 7-8 (–) (passive PoE, 100 Mb/s). For continuous operation the load should not exceed 80 % of the maximum current.

Key features

Output 48 V DC, 24 W
Input 100–240 V AC
2 × RJ-45 (data + PoE)
Passive PoE, 100 Mb/s
Short-circuit and overload protection

Technical data

Type	PoE power adapter (injector)
Standard	passive PoE, 100 Mb/s
Input	100–240 V AC
Output	48 V DC / 24 W
RJ-45 pins	data 1, 2 and 3, 6; power 4, 5 (+) and 7, 8 (–)
Operating temperature	0 … +40 °C, 5 … 90 % RH
Weight	0,2 kg
Dimensions	85 × 44 × 30 mm
