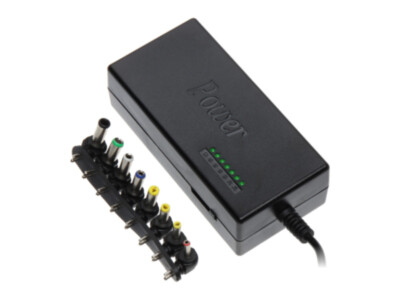

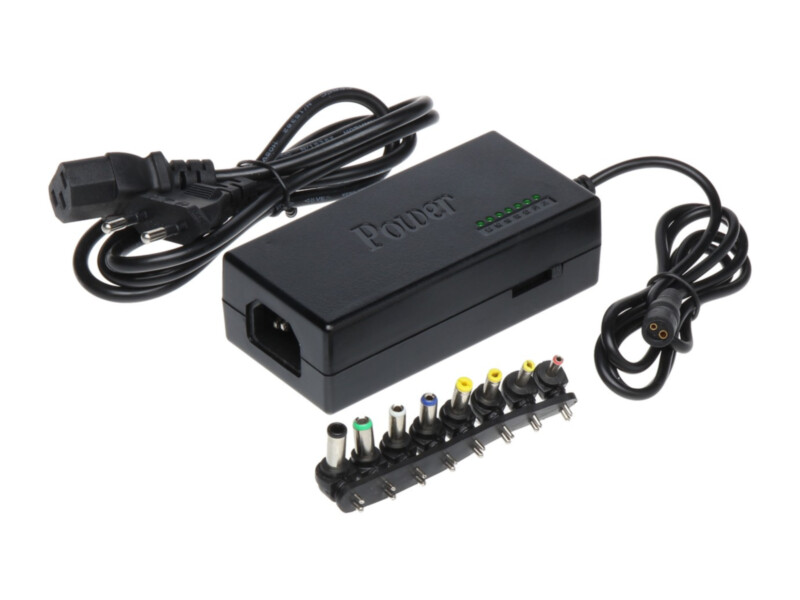

Power adapter 12–24 V DC | 4–4.5 A | 8 interchangeable plugs

The 12-24V/4A/TAY is a switch-mode power adapter for recorders, cameras, laptops, monitors, printers and scanners. Output voltage is selectable: 12, 15, 16, 18, 19, 20 or 24 V DC; load up to 4.5 A (12–19 V) or 4 A (20 and 24 V). It comes with 8 output plugs: 6.50/4.40, 5.50/2.50, 3.50/1.35, 6.30/3.00, 4.80/1.70, 5.50/3.00, 7.40/5.00 and 8.00/5.50 mm. Plus (+) is inside the plug, minus (–) outside.

Key features

• Input 100–240 V AC, 50/60 Hz
• Output 12/15/16/18/19/20/24 V DC
• 4.5 A (12–19 V), 4 A (20–24 V)
• 8 interchangeable plugs
• Plus inside, minus outside

Technical data
