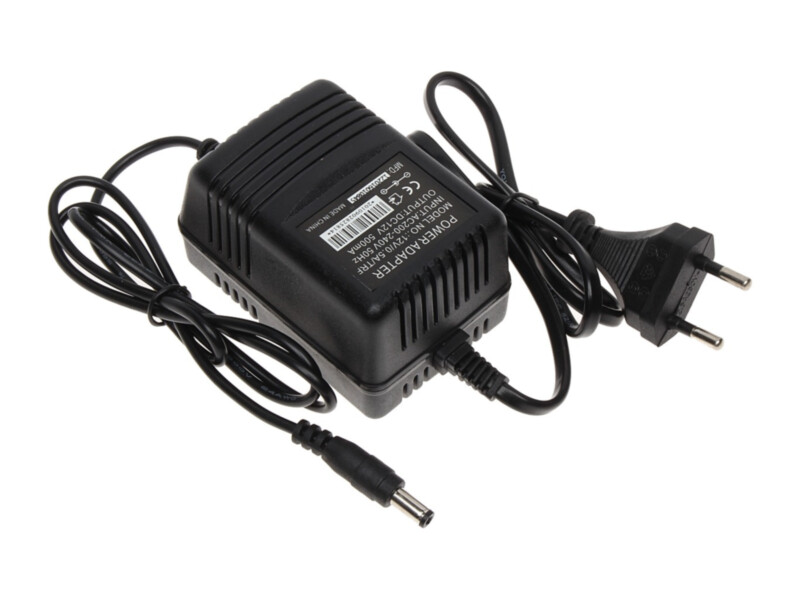

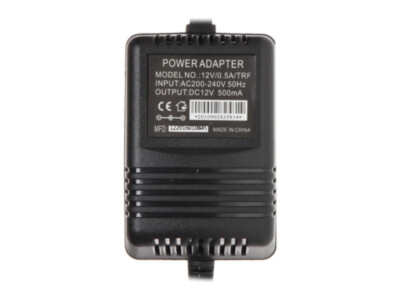

Power adapter 12 V DC | 0.5 A | transformer type | 2.1/5.5 mm plug

The 12V/0.5A/TRF is a transformer-type power adapter with one 12 V DC output (0.5 A, 6 W) and a straight 2.1/5.5 mm plug. Input 200–240 V AC, 50 Hz. Average efficiency 78.9 %, no-load consumption below 0.1 W. For continuous (24 h) operation the load should not exceed 80 % of the maximum current, and the adapter needs good cooling.

Key features

• 12 V DC, 0.5 A, 6 W
• Input 200–240 V AC, 50 Hz
• Straight 2.1/5.5 mm plug
• Transformer type, desktop housing

Technical data
