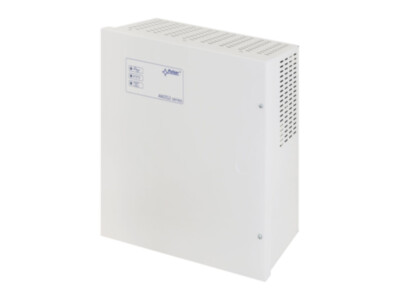

Pulsar AWZG2-12V5A-C buffer power supply in enclosure, 13.8 V, 5 A, battery 17 Ah, Grade 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€178.00 €221

Pre-order

SKU

AWZG2-12V5A-C

Product files

Datasheet

Product details

Product parameters
Manufacturer	Pulsar
Length	305
Width	305
Height	105

Toote kirjeldus

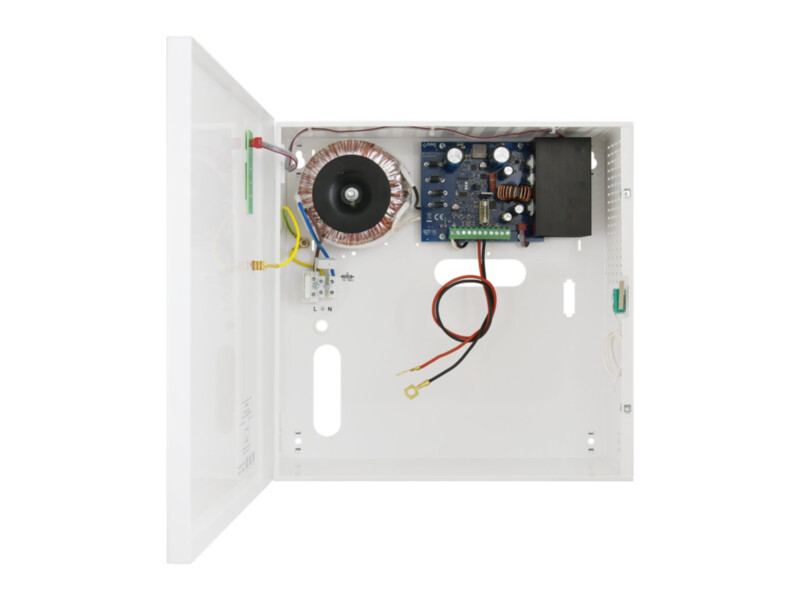

Pulsar AWZG2 is a microprocessor-controlled buffer power supply for intruder alarm and access control systems, compliant with EN 50131-6 (Grade 1 and 2) and EN 60839-11-2. The metal enclosure holds a battery that the unit charges and maintains.

The unit tests the battery dynamically, monitors battery circuit continuity, voltage and fuse status and protects the battery against deep discharge. The EPS and APS OC technical outputs report faults to the panel (the AWZ639 module turns them into relay outputs). A tamper switch monitors opening of the enclosure.

Features

EN 50131-6 Grade 2, EN 60839-11-2
Microprocessor control, dynamic battery test
EPS and APS technical outputs
Deep discharge protection, START function
Metal enclosure with battery space, tamper switch
5-year warranty

Technical data

Output voltage	13.8 V DC
Output current (max.)	5 A
Battery	17 Ah
Battery charging current	0.5/1/2 A
Security grade	Grade 2
Dimensions, mm	305 x 305 x 105
Weight, kg	3.87
Warranty	5 years
EAN	5902135319635
