Pulsar EN54M-5A7-17 power supply module for fire alarm systems, 27.6 V, 5 A, battery 2x7-17 Ah, EN 54-4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€170.00 €211

In stock 1

SKU

EN54M-5A7-17

Product files

Datasheet

Product details

Product parameters
Manufacturer	Pulsar
Length	204
Width	141
Height	52

Toote kirjeldus

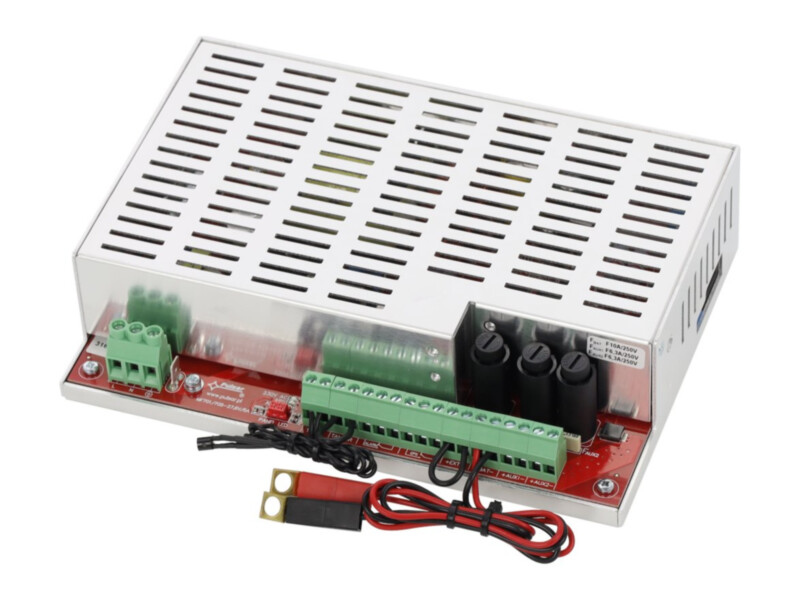

Pulsar EN54M is a power supply module for fire alarm and smoke and heat control systems that is built into a control panel or fire protection enclosure. It has the same functions as the boxed EN54C units: 27.6 V DC on two separately protected outputs, battery circuit resistance measurement, temperature-compensated charging and an automatic battery test.

The module can be mounted on a DIN rail with the EN54M-DIN1 bracket, works with the EN54C-LB4/LB8 fuse modules and reports faults via the ALARM and EPS relay outputs. For use in a fire alarm system, the enclosure it is installed in must meet EN 54-4.

Features

Unboxed module for building into a panel or enclosure
EN 54-4 and EN 12101-10
27.6 V DC, two separately protected outputs
Battery circuit resistance measurement, automatic battery test
DIN rail mounting with the EN54M-DIN1 bracket
ALARM and EPS relay outputs, 3-year warranty

Technical data

Output voltage	27.6 V DC
Output current (max.)	5 A
Continuous output current	4.2 A
Battery	2x7-17 Ah
Battery charging current	0.8 A
Standards	EN 54-4, EN 12101-10
Dimensions, mm	204 x 141 x 52
Weight, kg	0.88
Warranty	3 years
EAN	5902135314258
