Pulsar AWOP-925PP fire-resistant junction box, 9x2.5 mm², DIN 4102-12

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€17.90 €22

In stock 58

SKU

AWOP-925PP

Product files

Datasheet

Product details

Product parameters
Manufacturer	Pulsar
Length	189
Width	79
Height	28

Toote kirjeldus

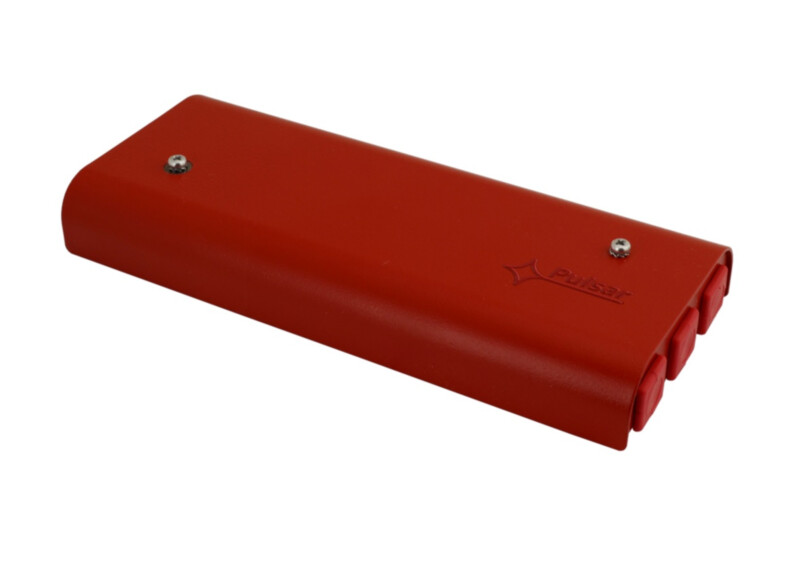

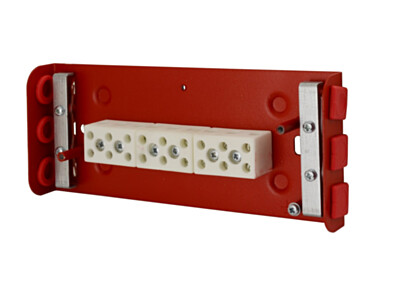

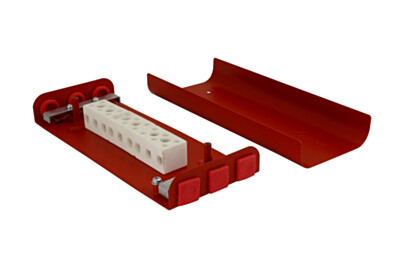

The Pulsar AWOP junction box connects fire protection devices in fire-resistant cable systems (DIN 4102-12), where power or signal must keep working during a fire. The box keeps the cable route mechanically intact in the fire zone.

It is used, for example, to supply fans and smoke vents, fire alarm control panels and voice alarm systems. The box has a CNBOP-PIB national technical assessment and verification of constancy of performance; the housing is 1 mm sheet steel, red (RAL 3001).

Features

For fire-resistant cable systems, DIN 4102-12
CNBOP-PIB technical assessment
Up to 450 V AC
Cable diameter up to 10 mm
Red steel housing, IP20
3-year warranty

Technical data

Dimensions, mm	189 x 79 x 28
Weight, kg	0.5
Warranty	3 years
EAN	5901643197759
