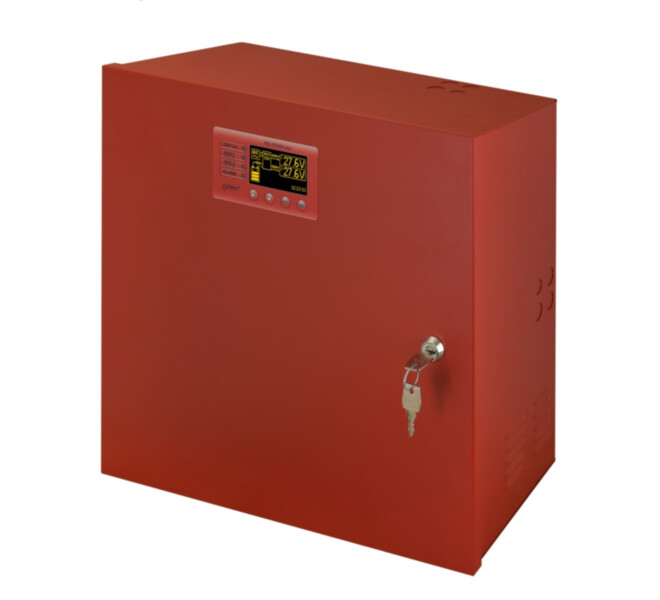

Pulsar EN54C-10A40LCD power supply for fire alarm systems with LCD, 27.6 V, 10 A, battery 2x40 Ah, EN 54-4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€326.00 €404

Pre-order

SKU

EN54C-10A40LCD

Product files

Datasheet

Product details

Product parameters
Manufacturer	Pulsar
Length	420
Width	407
Height	178

Toote kirjeldus

Pulsar EN54C-LCD is an EN54C series fire alarm power supply with an LCD display and network communication. The display shows voltages, currents, battery circuit resistance, faults and the operating history; settings are changed on the panel with two password levels.

Via Ethernet (RS485 as an option) and the built-in PowerSecurity web application the unit can be monitored remotely. Like the whole EN54C series it complies with EN 54-4 and EN 12101-10, supplies 27.6 V DC on two protected outputs and charges and tests the batteries automatically.

Features

LCD display: voltages, currents, battery circuit resistance, faults
Ethernet (RS485 optional) and PowerSecurity web application
Operating history, fault memory and real-time clock
EN 54-4 and EN 12101-10
27.6 V DC, two separately protected outputs

Technical data

Output voltage	27.6 V DC
Output current (max.)	10 A
Continuous output current	8.2 A
Battery	2x40 Ah
Battery charging current	1.8 A
Standards	EN 54-4, EN 12101-10
Dimensions, mm	420 x 407 x 178
Weight, kg	8.71
Warranty	3 years
EAN	5902135314432
