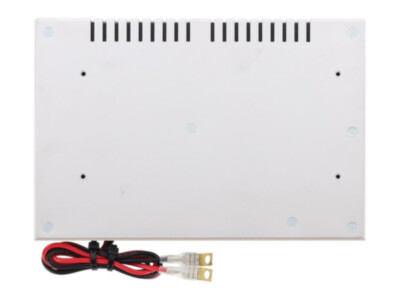

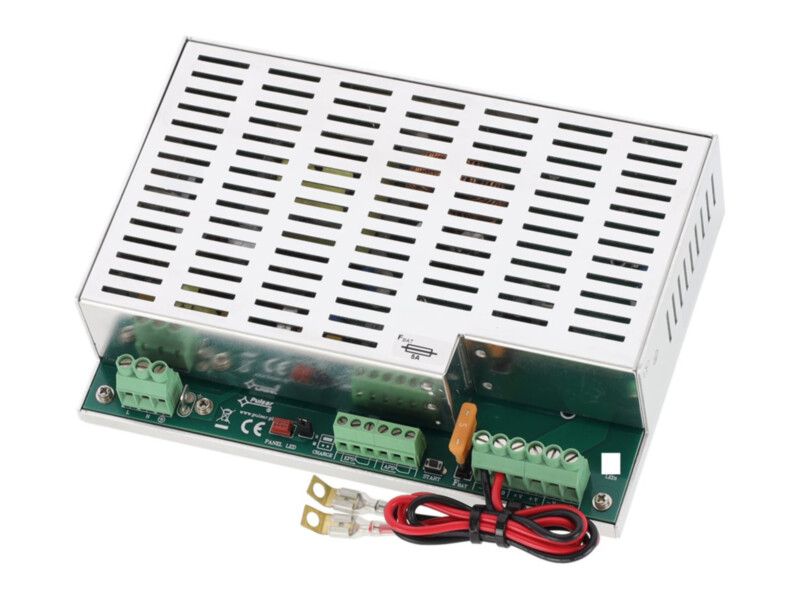

Pulsar PSG2-24V5A buffer power supply, 27.6 V, 5 A, Grade 2, without enclosure

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€55.00 €68

Pre-order

SKU

PSG2-24V5A

Product files

Datasheet

Product details

Product parameters
Manufacturer	Pulsar
Length	204
Width	141
Height	52

Toote kirjeldus

Pulsar PSG2 is a compact buffer power supply compliant with EN 50131-6 (Grade 1 and 2) and EN 60839-11-2. It is installed in an enclosure or on a DIN rail and supplies uninterrupted 13.8 V or 27.6 V DC, charging a separately installed battery.

The EPS (mains failure) and APS (battery failure) relay outputs report faults to the alarm panel. The unit tests the battery dynamically, monitors battery circuit continuity and voltage and protects the battery against deep discharge.

Features

EN 50131-6 Grade 2, EN 60839-11-2
EPS and APS relay outputs
Dynamic battery test, battery circuit monitoring
Installed in an enclosure or on a DIN rail (DIN3)
Short-circuit, overload and overvoltage protection, efficiency up to 89%

Technical data

Output voltage	27.6 V DC
Output current (max.)	5 A
Battery charging current	1/2 A
Security grade	Grade 2
Dimensions, mm	204 x 141 x 52
Weight, kg	0.86
Warranty	2 years
EAN	5902135319338
