Satel indoor siren | white | 120 dB | piezo | 12 V DC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€16.46 €20

In stock 1

SKU

SPW-100

Product files

Datasheet

Product details

Product parameters
Manufacturer	Satel

Toote kirjeldus

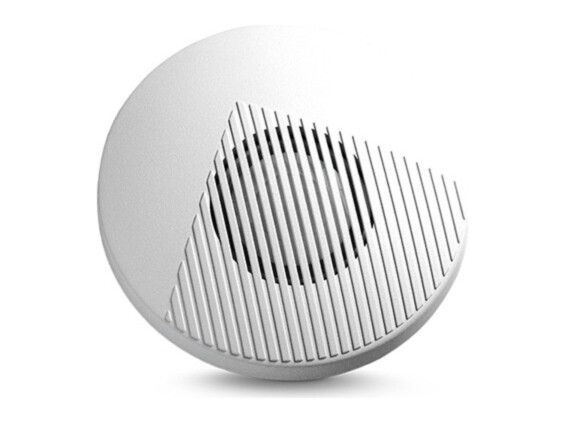

SPW-100 is an indoor siren with a piezoelectric transducer. Three modulated tones are selectable and the sound level is up to 120 dB at 1 m. The loud signal is well audible over large areas, for example in warehouses, production halls and indoor car parks. The siren can be mounted on a flat wall or ceiling. Tamper protection reports both opening of the enclosure and removal of the siren from the wall or ceiling. The siren is for indoor use only, power supply 12 V DC.

Key features

Piezoelectric transducer, up to 120 dB (1 m)
Three selectable modulated tones
Wall or ceiling mounting
Tamper protection against opening and removal
12 V DC supply, current up to 320 mA
Indoor use

Technical data

Type	piezo indoor siren
Colour	white
Sound level	up to 120 dB (at 1 m), 3 tones
Supply voltage	12 V DC ±15%
Maximum current	320 mA
Tamper	enclosure opening and removal from surface
Mounting	wall or ceiling, indoor
Environmental class	II (EN 50130-5)
Maximum humidity	93 ±3 %
Operating temperature	-10…+55 °C
Dimensions	130 × 130 × 40 mm
Weight	170 g
