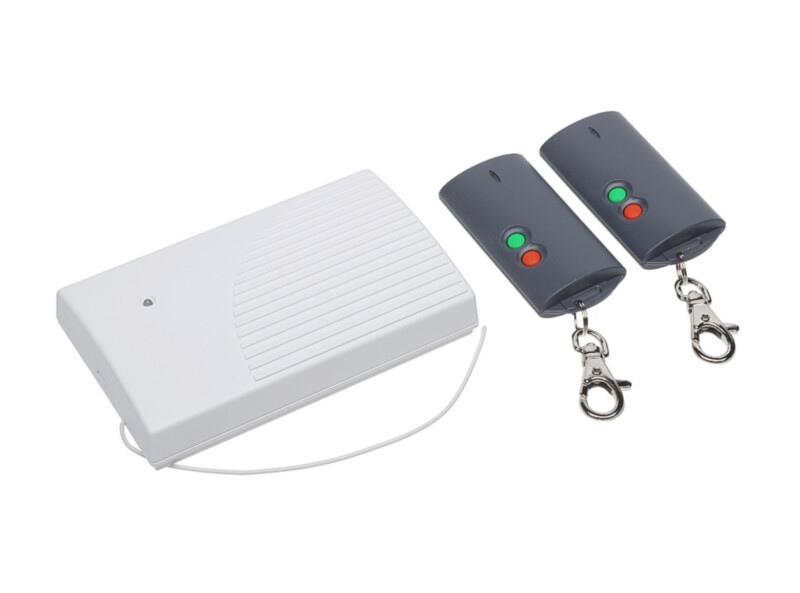

Satel radio controller set | 2 channels | 2 × T-2 keyfob | 433 MHz | 12–24 V

RK-2K is a 433 MHz radio controller that lets keyfobs control electrical devices connected to its relay outputs – for example parking barriers, gates, roller shutters and blinds. The set contains the controller and two two-button T-2 keyfobs. Up to 1024 keyfobs can be enrolled (SATEL T-1, T-2, T-4, P-2, P-4, MPT-300 and MPT-350); keyfob transmissions are protected by rolling code. Each relay output can work in pulse, monostable (5 s by default, time programmable) or bistable mode. The controller also has inputs and outputs for working with an alarm control panel, so keyfobs can operate the alarm system: two OC outputs indicate a low keyfob battery and arming / disarming / alarm clearing, and two inputs monitor the armed status and alarms of the alarm system. It can also be configured from a computer with the RK Soft program (RS-232 TTL port). A bicolour LED shows the status, and a tamper switch reports opening of the enclosure. Power supply 12–24 V DC or 24 V AC. Keyfob radio range in open area is up to 350 m.

Key features

• 2 relay outputs (C/NO/NC), 1 A / 24 V
• Pulse, monostable or bistable mode
• 2 T-2 keyfobs included, up to 1024 keyfobs
• Rolling code transmissions, 433 MHz, range up to 350 m
• 2 OC outputs and 2 inputs for an alarm control panel
• RK Soft configuration (RS-232 TTL), tamper switch
• Power supply 12–24 V DC or 24 V AC
