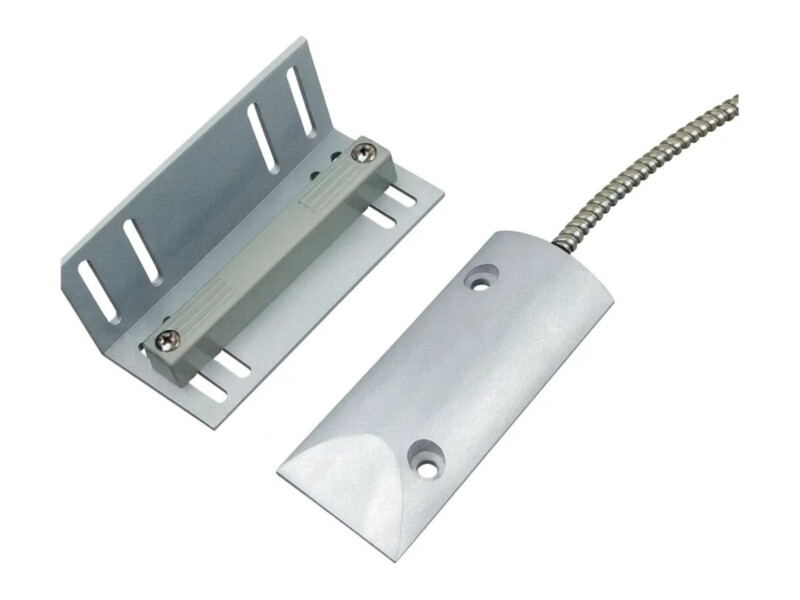

Sentek BSD-3012 roller door magnetic contact | silver | aluminium housing | armoured cable | 104 × 44 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€14.13 €18

Pre-order

SKU

BSD-3012

Product files

Product details

Product parameters
Manufacturer	Sentek
IP kaitseaste	IP67
Turvakategooria	None
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

Sentek BSD-3012 is a magnetic contact for overhead, garage and warehouse doors in an extruded aluminium housing that withstands harsh environments. The contact goes on the floor or frame and the magnet on the door leaf; the make gap is 65 mm. The 56 cm cable is armoured, and an L bracket is available as an option.

Key features

Extruded aluminium housing
Make gap 65 mm
56 cm armoured cable (22 AWG)
Optional L bracket
Resistor, diode or supervisory loop on request

Technical data

Mounting	Surface
Contact dimensions	104.5 × 44.5 mm
Magnet dimensions	108 × 14 × 14 mm
Make gap	65 mm
Release gap	71 mm
Contact	NC (closed loop when the door is closed)
Max. switching power	7.5 W
Max. switching voltage	100 V DC/AC
Max. switching current	0.4 A
Contact resistance	≤ 0.15 Ω
Connection	56 cm armoured cable (22 AWG)
Housing material	Extruded aluminium
