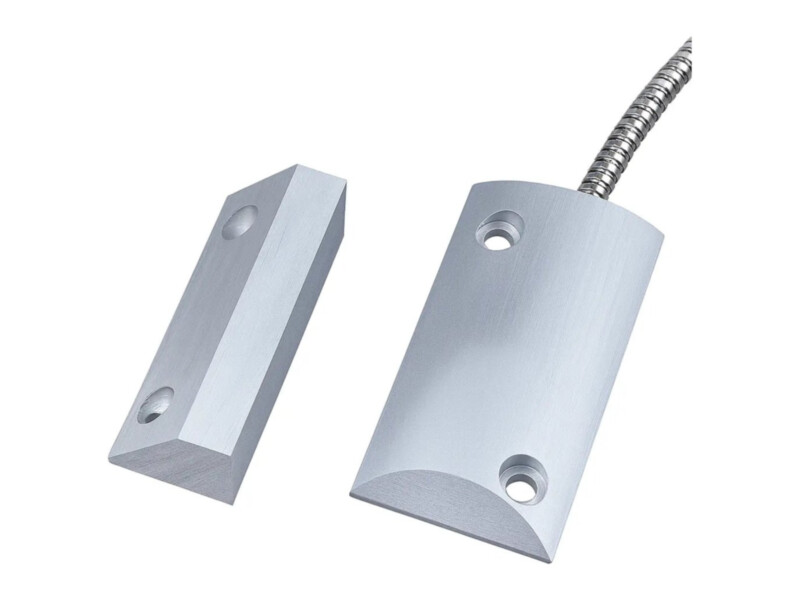

Sentek BSD-3014 roller door magnetic contact | silver | aluminium housing | armoured cable | 89 × 44 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€13.31 €17

In stock 16

SKU

BSD-3014

Product files

Datasheet

Product details

Product parameters
Manufacturer	Sentek
Length	93
Width	44
Height	11
IP kaitseaste	IP67
Turvakategooria	None
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

Sentek BSD-3014 is a magnetic contact for overhead, garage and warehouse doors in a heavy-duty extruded aluminium housing. The large make gap (75 mm) allows installation on doors whose leaf moves loosely in the frame. The 56 cm cable is armoured, and an L bracket is available as an option.

Key features

Heavy-duty aluminium housing
Make gap 75 mm
56 cm armoured cable (22 AWG)
Optional L bracket
Resistor, diode or supervisory loop on request

Technical data

Mounting	Surface
Contact dimensions	88.9 × 44.5 mm
Magnet dimensions	73.2 × 36 × 31 mm
Make gap	75 mm
Release gap	80 mm
Contact	NC (closed loop when the door is closed)
Max. switching power	7.5 W
Max. switching voltage	100 V DC/AC
Max. switching current	0.4 A
Contact resistance	≤ 0.15 Ω
Connection	56 cm armoured cable (22 AWG)
Housing material	Extruded aluminium
