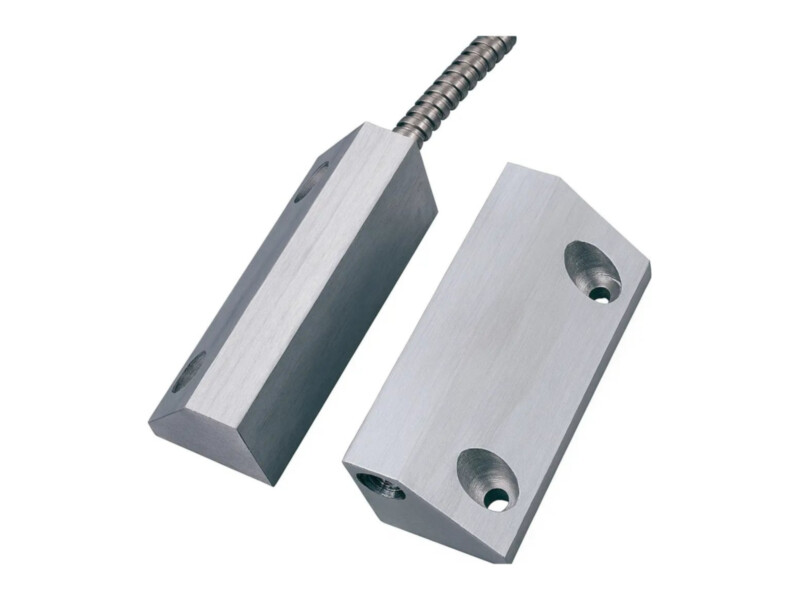

Sentek BSD-3015 roller door magnetic contact | silver | aluminium housing | armoured cable | 73 × 30 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€13.74 €17

In stock 9

SKU

BSD-3015

Product files

Datasheet

Product details

Product parameters
Manufacturer	Sentek
IP kaitseaste	IP67
Turvakategooria	None
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

Sentek BSD-3015 is a smaller 73 × 30 mm magnetic contact for overhead, garage and warehouse doors. The heavy-duty extruded aluminium housing withstands harsh environments and the make gap is 75 mm. The 56 cm cable is armoured.

Key features

Compact aluminium housing
Make gap 75 mm
56 cm armoured cable (22 AWG)
Resistor, diode or supervisory loop on request

Technical data

Mounting	Surface
Contact dimensions	73.2 × 30 × 30 mm
Magnet dimensions	73.2 × 30 × 30 mm
Make gap	75 mm
Release gap	80 mm
Contact	NC (closed loop when the door is closed)
Max. switching power	7.5 W
Max. switching voltage	100 V DC/AC
Max. switching current	0.4 A
Contact resistance	≤ 0.15 Ω
Connection	56 cm armoured cable (22 AWG)
Housing material	Extruded aluminium
