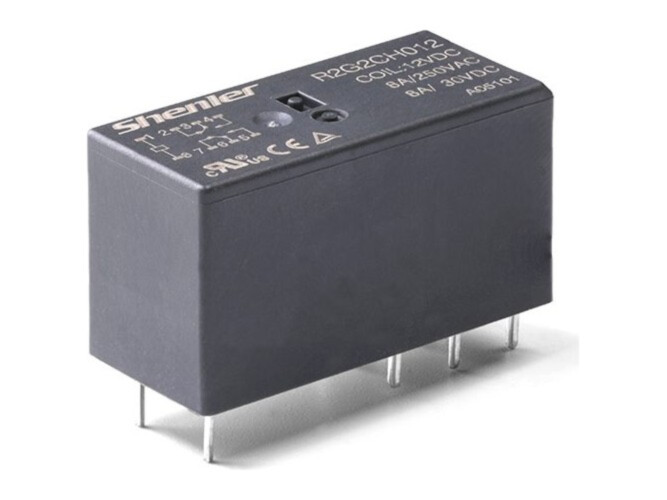

Shenler R2G2CH012 relay | 12 V DC | 2 changeover (2xNO/NC) | 8 A / 250 V AC

The Shenler R2G2CH012 is a sealed R2G series power relay with two changeover contacts (2C). The coil is 12 V DC and draws about 0.4 W. The silver-alloy contacts carry 8 A / 250 V AC or 30 V DC resistive load, with a switching capacity of up to 2000 VA / 240 W. There is up to 8 mm of insulation distance between coil and contacts and 5000 V AC dielectric strength; the relay works at ambient temperatures up to 85 °C. Pin pitch is 5.0 mm; the relay fits the Shenler SRC08-E socket.

Key features

• Coil 12 V DC (approx. 0.4 W)
• 2 changeover contacts (2xNO/NC)
• 8 A / 250 V AC, 30 V DC
• Coil–contact 5000 V AC
• Socket: Shenler SRC08-E
