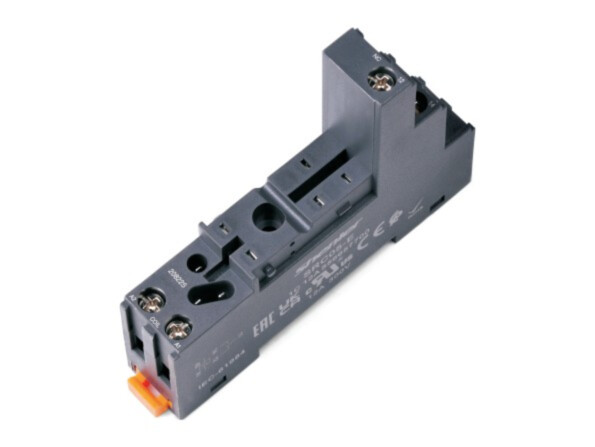

Shenler SRC08-E relay socket | for 2-pole R2G relays | 10 A / 300 V | screw terminals

The SRC08-E is a Shenler socket for 8-pin (2-pole) R2G relays. Rated current 10 A, rated voltage 300 V; dielectric strength 4000 V/min between coil and contacts and 2500 V/min between contacts. Wires connect to screw terminals (0.5–2.5 mm², 20–14 AWG, tightening torque up to 1.0 Nm). Optional accessories: SR2P ID tag, SR08B bus jumper, AMD protection module and SR15L / SR20F / SR25C retaining clips (for relay heights 15 / 20 / 25 mm).

Key features

• For 8-pin R2G relays (2-pole)
• 10 A / 300 V
• Screw terminals 0.5–2.5 mm²
• -40 … +85 °C
• Options: SR2P, SR08B, AMD, clips

Technical data
