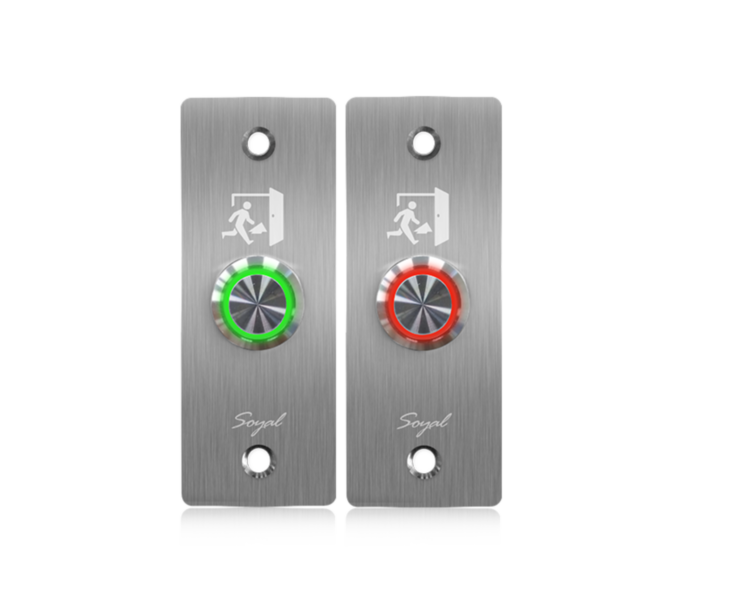

Soyal door release button | stainless steel | Slim, bi-colour LED, NO/NC, 6 wires

The Soyal AR-PB2 is a round-button door release button made entirely of stainless steel with a glossy finish. The thin flush-mounted design is sturdy and weather resistant, so the button suits both indoor and outdoor use. This is the Slim model (AR-PB2-041108, 108 × 41 mm) with six wires: COM, NO and NC contact (up to 30 V DC / 100 mA), LED supply +12 V DC and separate wires for green and red light – a colour lights when its wire is connected to 0 V, so the access controller can, for example, show the door status on the button. If the LED is not used, these wires can be left unconnected. The contact is a conventional switch that needs no power; actuating force ≤ 3 N, life over 500,000 operations. Operating temperature -20 … +65 °C.

Technical data
