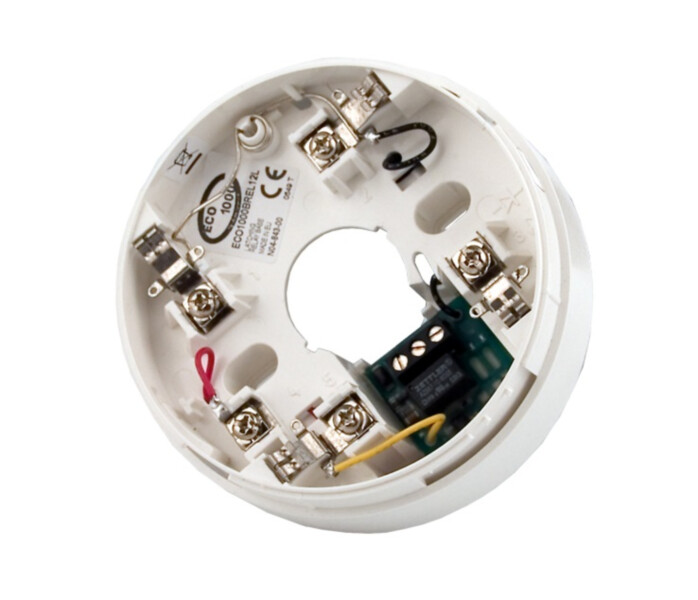

System Sensor ECO1000BREL12L relay detector base | 12 V | latching

System Sensor ECO1000BREL12L is a latching relay base for ECO1000 conventional detectors, designed for 12 V fire or security control panels that need an external contact to activate ancillary equipment. The relay is controlled directly by the detector: in alarm both the detector and the base latch, and they are reset by removing the supply. Normally open (NO), normally closed (NC) and common relay terminals are on a separate terminal block. The base can be used with 4-wire security systems that have a reset facility. The base has a shorting spring for wiring checks, a tamper-resistant feature and a remote LED option.

Key features

• 12 V, latching relay
• NO/NC contact 1 A DC
• For 2- and 4-wire systems
• For fire and security systems
• Tamper-resistant, remote LED option
