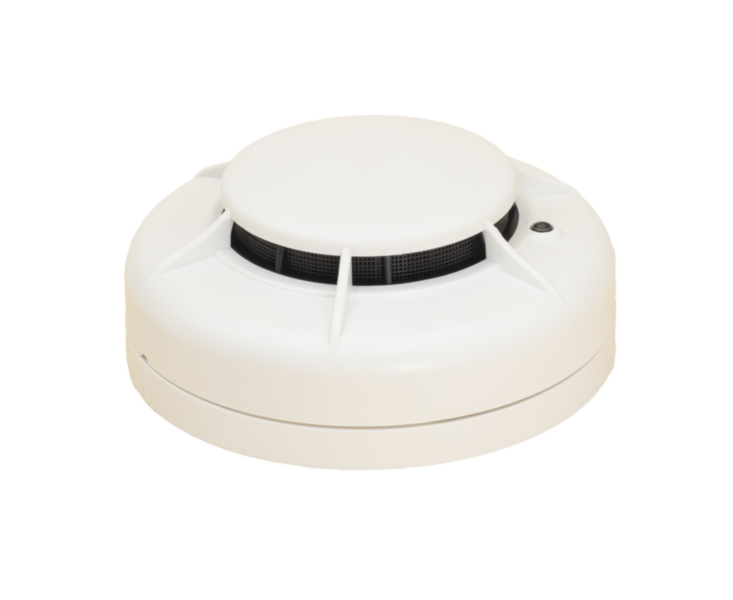

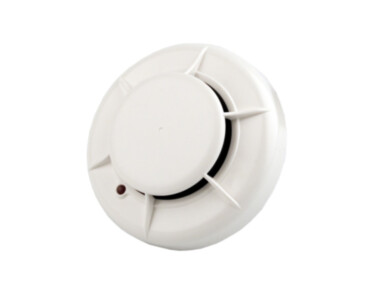

System Sensor optical smoke detector | conventional | EN 54-7

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€27.40 €34

In stock 78

SKU

ECO1003 A

Product files

Datasheet

Product details

Product parameters
Detector type	Optical
Self-testing	No
Manufacturer	System Sensor
Length	102
Width	102
Height	42

Toote kirjeldus

ECO1000 is System Sensor's range of conventional fire detectors. ECO1003 A is a low-profile optical (photoelectric) smoke detector whose chamber design and automatic drift compensation extend the service interval before cleaning is needed. It operates on 12 V and 24 V systems. The detector LED lights in alarm and latches on until the detector is reset by a momentary power interruption; a remote LED indicator can be connected. The alarm can be tested remotely with the ECO1000RTU laser test unit. The base has a shorting spring for checking the wiring before the detectors are fitted, and a tamper-resistant feature which, when activated, prevents removal of the detector without a tool.

Key features

Optical smoke detector, EN 54-7
For 12 V and 24 V systems
Automatic drift compensation
Latching alarm LED, remote LED option
Remote laser testing (ECO1000RTU)
Tamper-resistant base feature

Technical data

Type	conventional optical smoke detector
Operating voltage	8–30 V DC (nominal 12/24 V)
Standby current	45 µA (typical, 24 V DC, 25 °C)
Alarm current	max. 80 mA (limited by the panel or base resistor)
Alarm latching	reset by momentary power interruption
Operating temperature	−30…+70 °C
Humidity	0–95 %, non-condensing
Protection rating	IP40, IP43 with WB-1 enclosure (ECO1000DB base only)
Dimensions	Ø 102 mm, height 32.5 mm (+9.5 mm standard base)
Weight	75 g (+45 g standard base)
Terminals	0.4–2.0 mm²
Colour	white (approx. RAL 9016)
Material	ABS
Compatible with	ECO1000B, ECO1000DB, ECO1000BREL12L/24L and other ECO1000 bases
Standards	EN 54-7
