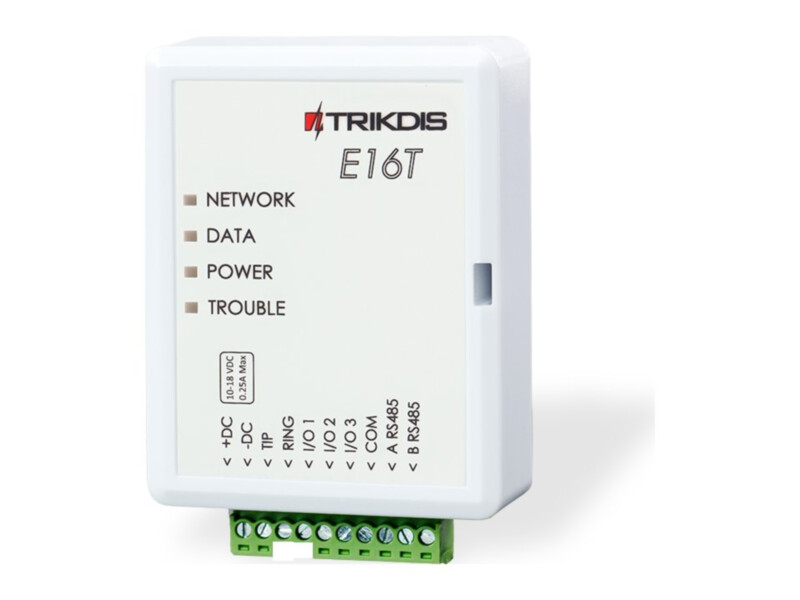

Trikdis E16T Ethernet communicator | RJ45 | TIP/RING dialer interface | Protegus 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€84.92 €105

Pre-order

SKU

TX-E16T_2

Product files

Datasheet

Product details

Product parameters
Manufacturer	Trikdis
Length	88
Width	65
Height	26

Toote kirjeldus

The Trikdis E16T is a universal Ethernet communicator for any alarm panel with a landline dialer. The E16T simulates a telephone line, takes the panel's events from the TIP/RING terminals in Contact ID or SIA format and sends them encrypted over the wired LAN (RJ45) to the monitoring station. To install it, the panel's dialer is simply connected to the E16T's TIP/RING terminals. The wired link suits basements, server rooms and shielded buildings where 4G/LTE coverage is weak or unavailable, and it is immune to radio jamming. The user receives push notifications in the Protegus 2 app and can arm and disarm the system remotely: a communicator output is wired to the panel's keyswitch zone for this.

Key features

Connects to the panel's telephone dialer (TIP/RING), Contact ID and SIA formats
Ethernet 10Base-T (IEEE 802.3), RJ45 port
Protocols TRK, SIA DC-09 (2007/2012), SUR-GARD (TL150); AES-128 encryption
30-second supervised polling to the monitoring station
Parallel reporting to the monitoring station and the Protegus 2 app
3 dual-purpose terminals (input or OC output 0.15 A), expandable with iO series modules
Configuration via USB Mini-B or remotely with TrikdisConfig

Technical data

Power supply voltage	10–18 V DC
Current consumption	100 mA (standby); up to 250 mA (while sending data)
Ethernet connection	IEEE 802.3, 10Base-T, RJ45 socket
Connection to the panel	via the telephone dialer (TIP/RING terminals)
Dual-purpose terminals (IN/OUT)	3, each an input (NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL; 10 kΩ) or an open-collector (OC) output up to 0.15 A, 30 V DC max; expandable with iO series modules
Transmission protocols	TRK, SIA DC-09 (2007, 2012), SUR-GARD TL150
Message encryption	AES-128
Configuration	remotely with TrikdisConfig or locally via the USB Mini-B port
Unsent message buffer	up to 60 messages
Operating environment	temperature −10…+50 °C, relative humidity up to 80% at +20 °C
Dimensions	88 × 65 × 26 mm
Weight	80 g
