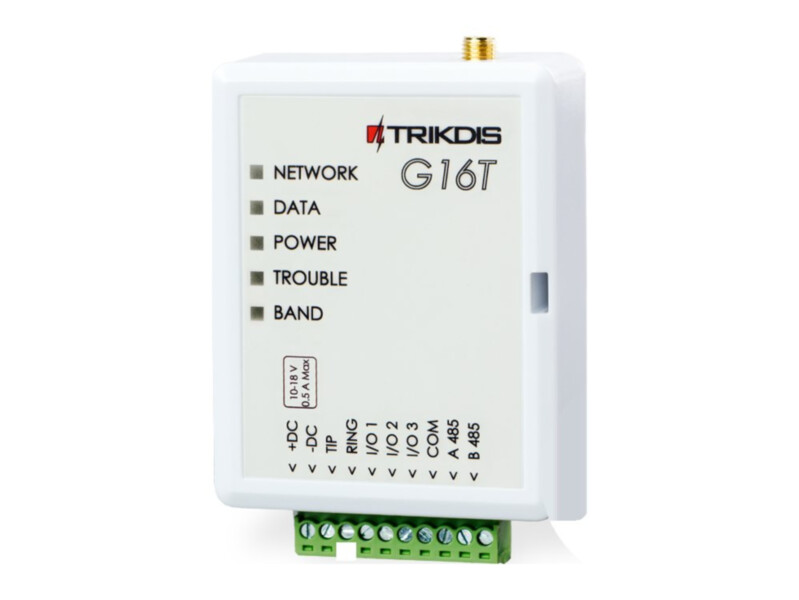

Trikdis G16T cellular communicator | 4G LTE | TIP/RING dialer interface | Grade 4 | Protegus 2

The Trikdis G16T is a universal 4G LTE communicator for any alarm panel that has a landline (PSTN) dialer. The G16T simulates a telephone line, takes the panel's events from the TIP/RING terminals in Contact ID or SIA format and sends them encrypted over 4G LTE to the monitoring station. In most cases the panel settings do not need to change – the dialer is simply connected to the G16T. At the same time the user receives push notifications and the system status in the Protegus 2 app and can arm and disarm the system remotely: a communicator output is wired to the panel's keyswitch zone for this. Gates, barriers or lighting can also be controlled from the app.

Key features

• Connects to the panel's telephone dialer (TIP/RING), Contact ID and SIA formats
• 4G LTE (Cat-1) with automatic 2G fallback
• Protocols TRK, SIA DC-09 (2007/2012), SUR-GARD (TL150); AES-128 encryption
• Parallel reporting to the monitoring station and the Protegus 2 app; SMS and call notifications as backup
• 30-second supervised polling to the monitoring station
• Remote arming of 1 area via the keyswitch zone
• 2 dual-purpose terminals (input or OC output) and 1 OC output, expandable with iO series modules

Technical data
