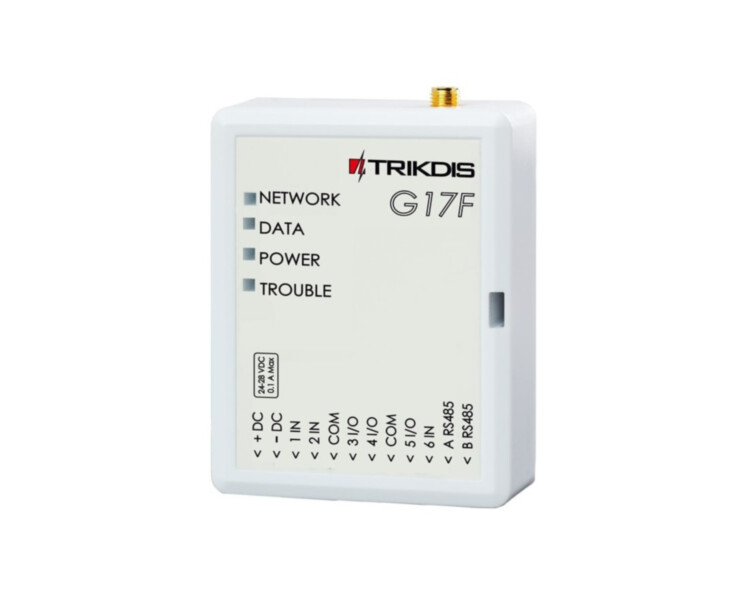

Trikdis G17F cellular communicator for fire panels | 4G LTE | EN 54-21 | 3 inputs + 3 I/O

The Trikdis G17F is a 4G LTE communicator designed for fire alarm systems that reports the fire panel's alarms and faults to the monitoring station. It is certified to EN 54-21 (Type 1 and Type 2), and fire alarms always take priority over technical signals. The G17F connects to the fire panel's relay outputs with 6 monitoring terminals – 3 inputs and 3 terminals selectable as input or output, for signals such as fire, fault, water flow and power loss – and, with supported panels, also through the RS485 interface. Events are sent encrypted with the TRIKDIS or SIA DC-09 protocol to Trikdis software or hardware receivers, and the connection is polled every 30 seconds. A dedicated output signals a communication trouble locally.

Key features

• Certified to EN 54-21 (Type 1 and Type 2)
• 4G LTE with 2G backup
• 3 inputs + 3 dual-purpose terminals (NC, NO, EOL 10 kΩ)
• RS485 interface for data exchange with supported fire panels
• Fire alarms always prioritised over technical signals
• Protocols TRK and SIA DC-09; 30-second polling
• Trouble output for local signalling of communication loss
• Power supply 9–32 V DC
