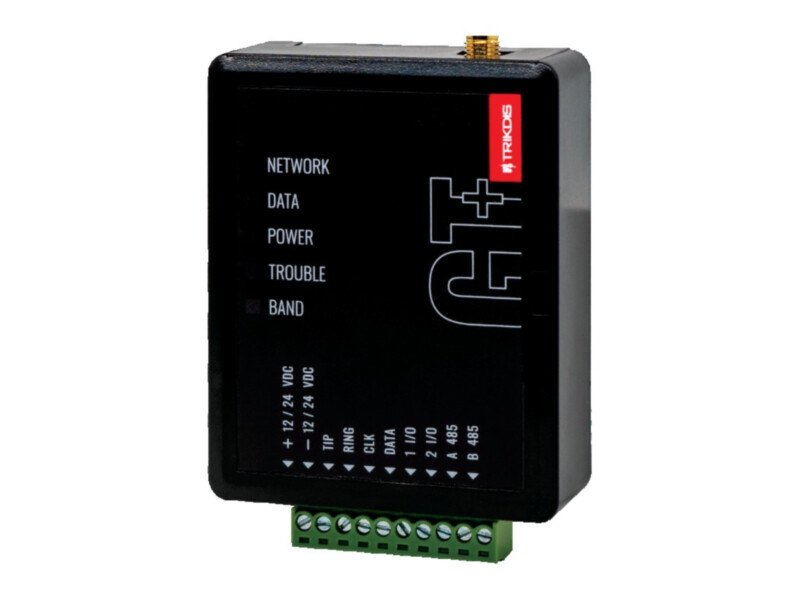

Trikdis GT+ cellular communicator | 4G LTE | TIP/RING + panel data bus | Grade 4 | Protegus 2

The Trikdis GT+ is a 4G LTE communicator that upgrades the reporting path of any alarm panel. It has both a telephone (PSTN, TIP/RING) interface and a serial/data bus connection: it receives the events of DSC, Paradox and UTC Interlogix (Caddx) panels and gives full control of them. Events are sent encrypted with the SIA DC-09 protocol to the monitoring station, the connection is supervised every 30 seconds and two SIM cards give a backup path. From the Protegus 2 app the system can be armed and disarmed, outputs controlled and, with administrator rights, user codes changed. Two dual-purpose terminals serve local automation and can be expanded with iO-8 modules.

Key features

• Telephone interface (TIP/RING) and panel data bus (DSC, Paradox, UTC Interlogix)
• 4G LTE, two SIM cards for a backup path
• SIA DC-09 (2007/2012), TRK; AES-128 encryption; 30 s supervised polling
• “CMS first”: events reach the monitoring station before the app users
• Protegus 2: arming, output control, remote user code management
• 2 dual-purpose terminals (input or OC output), expandable with iO-8 modules
• Configuration with TrikdisConfig remotely or via USB-C; settings cloned from a file
