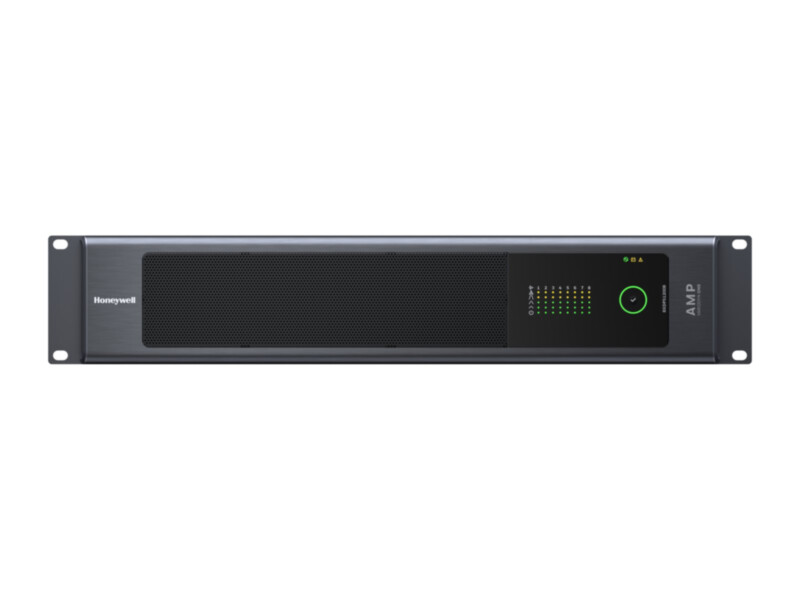

Variodyn ONE amplifier 8XDPS1200B, 8 channels, 1200 W total, with battery charger, EN 54-16
€12,753.18
€15,814
Pre-order
SKU
585035
Toote kirjeldus
8XDPS1200B is a Variodyn ONE 8-channel class D direct-drive amplifier with Power Sharing and a built-in battery charger. Total power is 1200 W, each channel delivers up to 500 W / 100 V. The configurable charger charges 24 V batteries up to 150 Ah for backup during mains failure. Compliant with EN 54-4 and EN 54-16.
Key features
- EN 54-4 / EN 54-16
- 8 channels, 1200 W total
- Up to 500 W / 100 V per channel
- Battery charger, 24 V batteries 65–150 Ah
- Power Sharing
Technical data
| Power | Single channel max. 500W/100V (350W/70V or 125W/25V) |
|---|---|
| Power supply | 115V to 230V AC 50 to 60 Hz, ±10% |
| Backup supply | 21.5V DC to 28.5V DC |
| Output voltage | 100V (factory default configuration), 70V or 25V at 0 dBu input |
| Batteries | Valve-regulated lead-acid battery: 65Ah min. (factory default configuration),105Ah,150Ah max. |
| Operating temperature | -5 °C to +55 °C |
| Storage temperature | -10 °C to +55 °C |
| Humidity | Up to 93 % (non-condensing) |
| Material | Metal |
| Colour | RAL 810-M (Enclosure) |
| Dimensions | 441 x 88 x 401 mm (2 HU) |
| Weight | 12.0 Kg |
