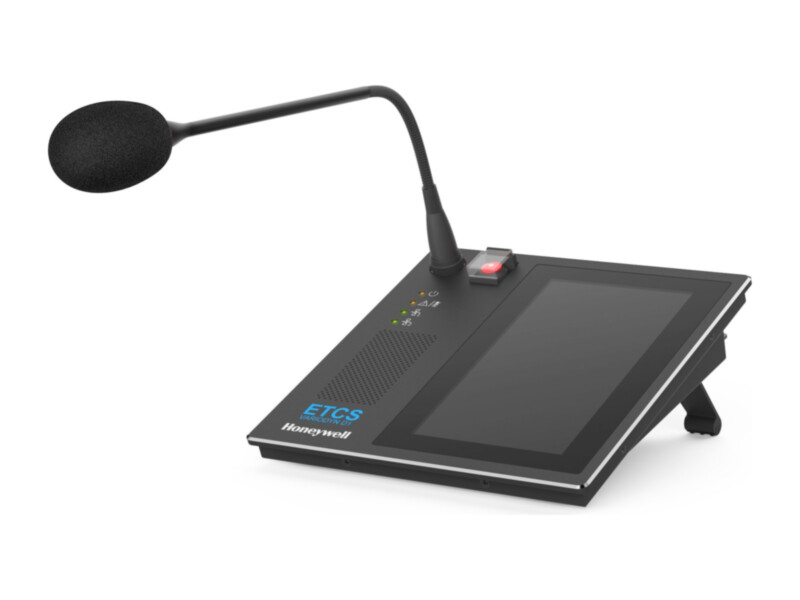

Variodyn ONE Ethernet touch call station ETCS, 7" screen, EN 54-16

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,935.00 €4,879

Pre-order

SKU

583527

Product files

Datasheet

Toote kirjeldus

ETCS is a call station with a 7" touch screen and a simple user interface. Four bi-colour LEDs show microphone fault, system fault and the connection state of two redundant cables. A red button with cover can be set for emergency announcements. Replaceable, monitored electret gooseneck microphone and a loudspeaker for local pre-listening and intercom between call stations. Ethernet connection, powered via PoE or external adapter.

Key features

EN 54-16
7" touch screen
Red emergency button with cover
Replaceable gooseneck microphone
Ethernet, PoE

Technical data

Frequency range	0 … 20000 Hz
Power consumption	max. 6 W
Microphone	Electret, uni-directional
Gooseneck	400 mm
Operating temperature	-5 °C … +45 °C
Humidity	15 % … 95 % rel. hum. (non-condensing)
Colour	black, similar to RAL 9005
Dimensions	W: 200 mm L: 49.4 mm D: 200 mm
Weight	approx. 1.65 kg
