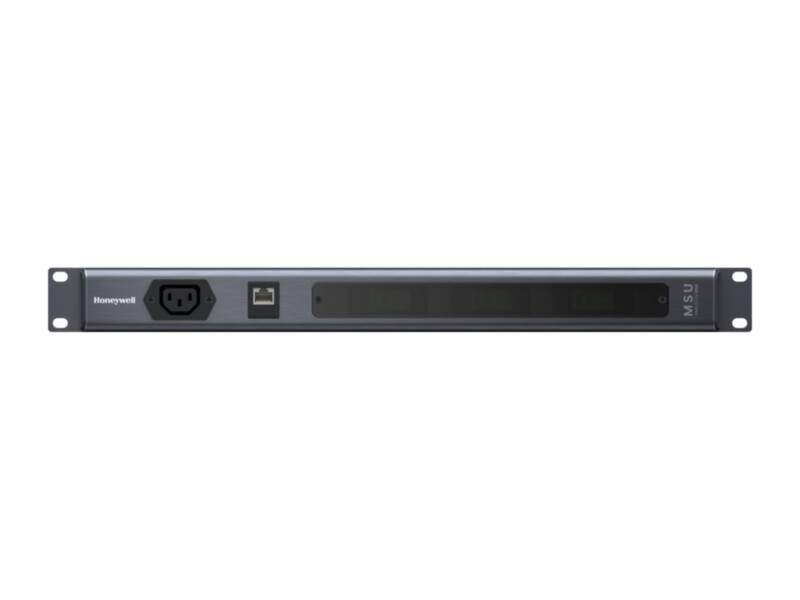

Variodyn ONE MSU mains switching unit, 3 phases, 19" 1 HU, EN 54-16

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,540.00 €1,910

In stock 1

SKU

585002

Product files

Datasheet

Toote kirjeldus

The MSU (Mains Switching Unit) protects the supply of all Variodyn ONE components installed in a cabinet and provides a connector for a service PC for local or network-wide maintenance. Each of up to three phases has an overcurrent switch that trips automatically and can also be operated manually; green lamps show the state and the switch position can be read via auxiliary contacts.

Key features

EN 54-16
3 overcurrent switches (one per phase)
Status lamps
Service PC connector
19", 1 HU

Technical data

Operating temperature	-5 °C … +55 °C
Storage temperature	-10 °C … +60 °C
Humidity	15 % … 90 % rel. hum. (non-condensing)
Material	Metal
Colour	Grey, similar to RAL 7016
Dimensions	(W x H x D) 483 x 44 x 345 mm (1 HU)
Weight	Approx. 7.61 kg
