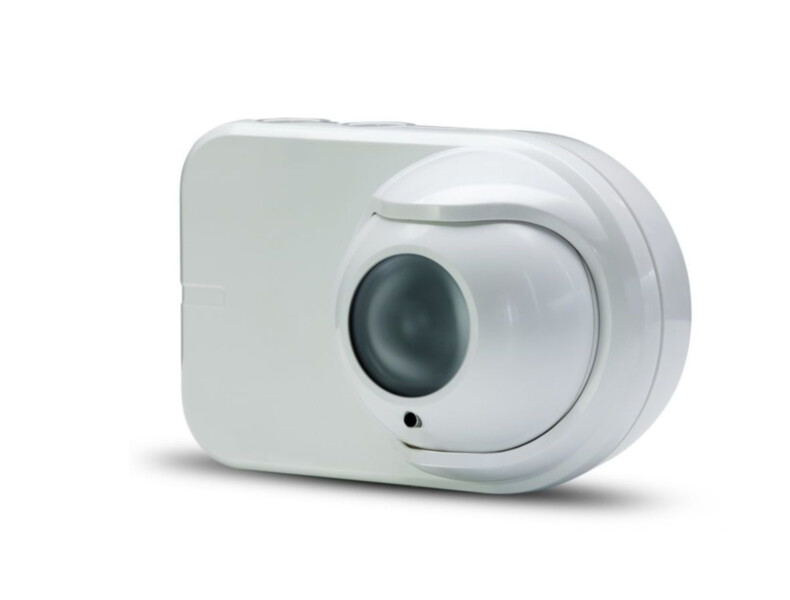

Xtralis OSID beam detector emitter | high power | battery powered, up to 3 years

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€632.00 €784

Pre-order

SKU

OSE-HP-01

Product files

Datasheet

Product details

Product parameters
Manufacturer	Xtralis
Length	130
Width	198
Height	96

Toote kirjeldus

The emitter is the transmitting part of the Xtralis OSID beam smoke detector: it is mounted on the wall opposite the imager (OSI-10 or OSI-90) and sends the imager a sequence of ultraviolet and infrared pulses synchronised with it, so other light sources are rejected. The emitter's optical sphere is turned towards the imager with the laser alignment tool; as the imager finds and tracks the emitter itself, approximate alignment is enough. The high power emitter extends the detection range: 100–200 m with the OSI-10 imager, about twice the standard range with the OSI-90. The battery powered emitter needs no wiring: the built-in alkaline battery (spare pack OSE-RBA) lasts up to 3 years at room temperature.

Key features

Emitter, high power
Battery powered, up to 3 years
Detection range OSI-10: 100–200 m; OSI-90: 12–68 m (battery: 50 m)
UV and IR pulses synchronised with the imager
Approximate alignment with the laser alignment tool

Technical data

Type	beam detector emitter
Power class	high power
Power supply	alkaline battery OSE-RBA, up to 3 years (room temperature)
Detection range	OSI-10: 100–200 m; OSI-90: 12–68 m (battery: 50 m)
Compatible with	Xtralis OSID OSI-10, OSI-90
Ingress protection	IP40 electronics, IP66 optics
Operating temperature	-10 … +55 °C
Humidity	10–95% RH, non-condensing
Dimensions	208 × 136 × 96 mm
Colour	white, RAL 9003
Compliance	EN 54-12; CE (CPR, EMC), VdS
