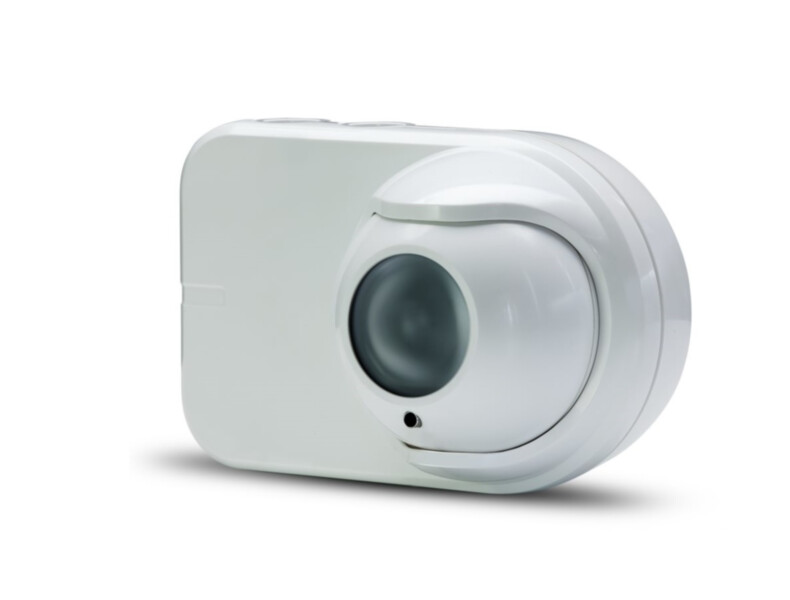

Xtralis OSID beam detector emitter | standard power | 24 V DC wired

The emitter is the transmitting part of the Xtralis OSID beam smoke detector: it is mounted on the wall opposite the imager (OSI-10 or OSI-90) and sends the imager a sequence of ultraviolet and infrared pulses synchronised with it, so other light sources are rejected. The emitter's optical sphere is turned towards the imager with the laser alignment tool; as the imager finds and tracks the emitter itself, approximate alignment is enough. With a standard power emitter the detection range is 30–150 m with the OSI-10 imager and 6–34 m with the OSI-90. The wired emitter is powered from a 20–30 V DC supply, convenient where 24 V power is close by.

Key features

• Emitter, standard power
• 24 V DC wired
• Detection range OSI-10: 30–150 m; OSI-90: 6–34 m
• UV and IR pulses synchronised with the imager
• Approximate alignment with the laser alignment tool
