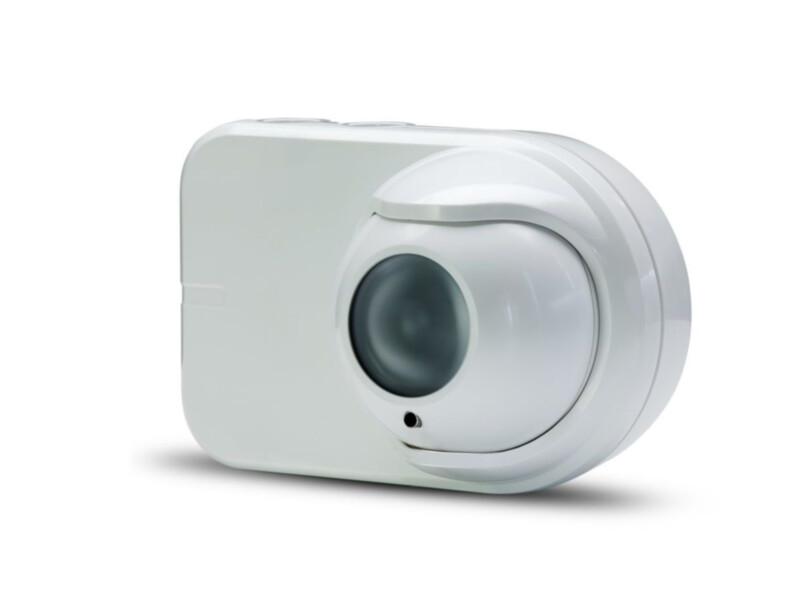

Xtralis OSID beam detector emitter | standard power | battery powered, up to 5 years

The emitter is the transmitting part of the Xtralis OSID beam smoke detector: it is mounted on the wall opposite the imager (OSI-10 or OSI-90) and sends the imager a sequence of ultraviolet and infrared pulses synchronised with it, so other light sources are rejected. The emitter's optical sphere is turned towards the imager with the laser alignment tool; as the imager finds and tracks the emitter itself, approximate alignment is enough. With a standard power emitter the detection range is 30–150 m with the OSI-10 imager and 6–34 m with the OSI-90. The battery powered emitter needs no wiring: the built-in alkaline battery (spare pack OSE-RBA) lasts up to 5 years at room temperature.

Key features

• Emitter, standard power
• Battery powered, up to 5 years
• Detection range OSI-10: 30–150 m; OSI-90: 6–34 m
• UV and IR pulses synchronised with the imager
• Approximate alignment with the laser alignment tool
