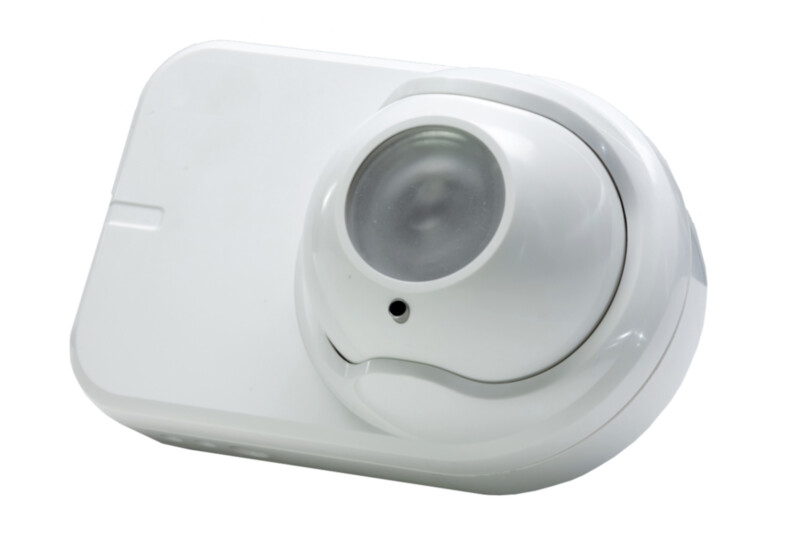

Xtralis OSID beam detector imager | 80° field of view | up to 7 emitters | up to 68 m | EN 54-12

Xtralis OSID (Open-area Smoke Imaging Detection) is an optical beam smoke detector for large open spaces, made up of an imager and one or more emitters. The emitter sends synchronised ultraviolet and infrared pulses to the imager; comparing the two wavelengths lets the system tell smoke apart from dust, steam and objects in the beam and gives repeatable smoke obscuration readings. The imager's CMOS imaging chip has a wide field of view, finds and tracks the emitters itself and compensates for drift caused by building movement – no precise alignment is needed and the system commissions itself in under ten minutes. It is configured with DIP switches, offers selectable alarm thresholds and connects to any conventional fire alarm panel through its alarm and fault relays. An event log helps analyse faults and alarms afterwards. The OSI-90 is a wide (80° × 48°) field-of-view imager that watches up to seven emitters placed at different heights at once, giving three-dimensional coverage of the space. The detection range is 6–34 m with standard power emitters and 12–68 m with wired high power emitters (up to 50 m with the battery powered OSE-HP-01).

Key features

• Up to 7 emitters per imager, volumetric coverage
• Dual wavelength (UV + IR) smoke detection
• Detection range 6–34 m (SP) or 12–68 m (HP emitter)
• CMOS imaging chip, automatic emitter location and tracking
• Self-commissioning in under 10 minutes, DIP switch setup
• Alarm and fault relays, status LEDs, event log
