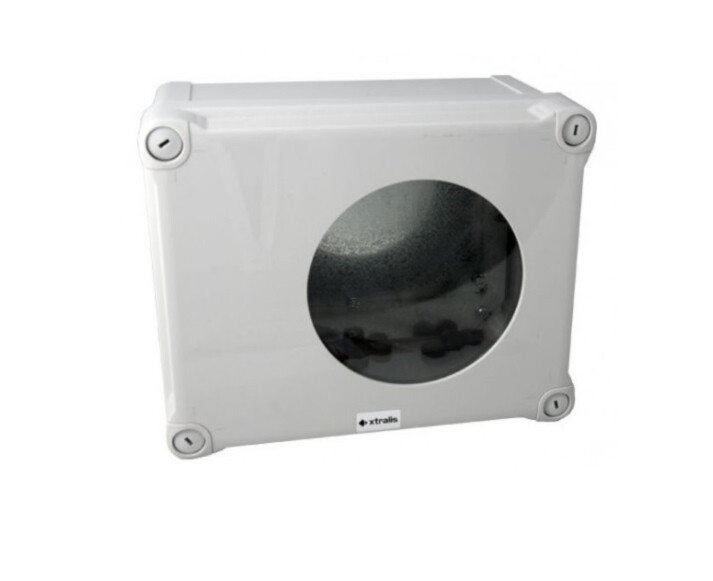

Xtralis OSID emitter environmental housing | grey, ABS | IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€418.00 €518

Pre-order

SKU

OSID-EHE

Product files

Datasheet

Product details

Product parameters
Manufacturer	Xtralis
Length	241
Width	194
Height	127

Toote kirjeldus

The Xtralis OSID environmental housing protects the emitter against dust and water ingress in industrial and harsh environments (IP66, NEMA 4-4X). It is made of ABS with a glass window that attenuates the UV and IR beams only minimally. The housing is used only in systems with one emitter and one imager. Installation and servicing are easy: there are three pre-drilled fixing holes, and a heater can be fitted inside where condensation is expected. The emitter housing takes both battery powered and 24 V wired emitters. With the housing the detection range is 25–125 m for the OSI-10 and 5–28 m for the OSI-90.

Key features

IP66, NEMA 4-4X – protection against dust and water
Glass window, minimal UV/IR attenuation
For 1 emitter + 1 imager systems only
3 pre-drilled fixing holes, heater can be fitted
Impact resistance IK07, operating temperature -25 … +60 °C

Technical data

Type	emitter environmental housing
Ingress protection	IP66, NEMA 4-4X
Material	ABS, glass window
Colour	grey, RAL 7035
Dimensions	241 × 194 × 127 mm
Operating temperature	-25 … +60 °C
Impact resistance	IK07
Detection range	OSI-10: 25–125 m; OSI-90: 5–28 m
Compatible with	Xtralis OSID OSE-SP-01, OSE-SPW, OSE-HP-01, OSE-HPW
