Yuasa NP series battery | 12 Ah | 12 V | 151×98×98 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€42.50 €53

In stock 92

SKU

NP12-12

Product files

Datasheet

Product details

Product parameters
Capacity	10–20 Ah
Manufacturer	Yuasa
Length	151
Width	98
Height	98

Toote kirjeldus

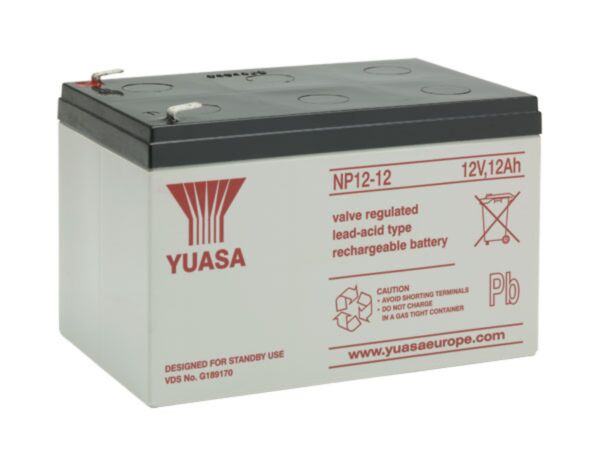

Yuasa NP12-12 is a 12 V 12 Ah maintenance-free valve-regulated lead-acid (VRLA) battery built with AGM technology. It is designed primarily for standby use in intruder and fire alarm systems, UPS and emergency lighting, and is also suitable for light cyclic use. Dimensions 151 × 98 × 97.5 mm, weight 4.05 kg, terminals: Faston 6.35 mm. The battery is VdS approved (Germany, no. G189170).

Key features

Design life up to 5 years at 20 °C, EUROBAT “Standard Commercial” classification 3–5 years
AGM technology: the electrolyte is held in a glass-fibre separator
Sealed construction prevents electrolyte leakage; maintenance-free, but regular inspection and testing are required
99% of the gas generated in normal use is recombined; a low-pressure valve releases excess gas on overcharge
Excellent recovery from deep discharge
Lead-calcium grids and high energy density for a long service life
Low self-discharge (approx. 3% per month at 20 °C) for a long shelf life
Can be installed at up to 90° from upright

Technical data

Nominal voltage	12 V
Capacity (20 h)	12 Ah
Capacity (10 h)	11.1 Ah
Technology	VRLA / AGM
Terminals	Faston 6.35 mm
Dimensions (L × W × H)	151 × 98 × 97.5 mm
Weight	4.05 kg
Case material	ABS (UL94:HB)
Float charge voltage (20 °C)	13.65 V ±1%
Cyclic charge voltage (20 °C)	14.5 V ±3%
Charge current limit	3 A
Max discharge current	360 A (1 s), 75 A (1 min)
Internal resistance (1 kHz)	16 mΩ
Operating temperature	charge −15 to +50 °C, discharge −20 to +60 °C
Storage temperature	−20 to +60 °C
Self-discharge	approx. 3% per month (20 °C)
Design life	up to 5 years (20 °C); EUROBAT 3–5 years
Approvals	VdS G189170, UL
