Yuasa NP series battery | 17 Ah | 12 V | 181×76×167 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€56.18 €70

In stock 86

SKU

NP17-12I

Product files

Datasheet

Product details

Product parameters
Capacity	10–20 Ah
Manufacturer	Yuasa
Length	181
Width	76
Height	167

Toote kirjeldus

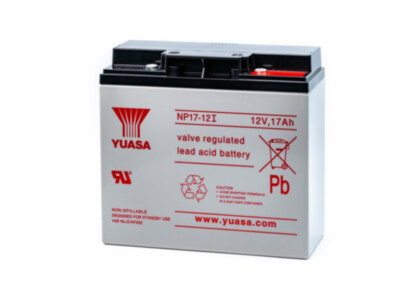

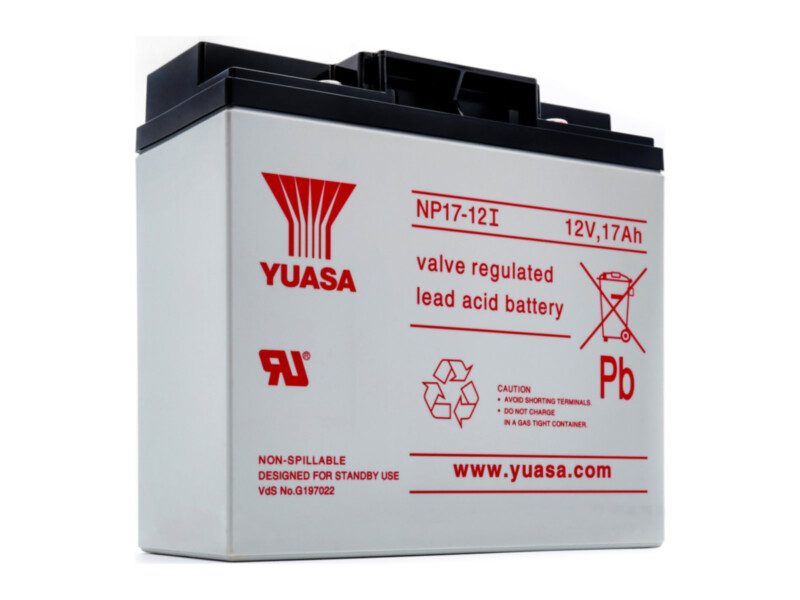

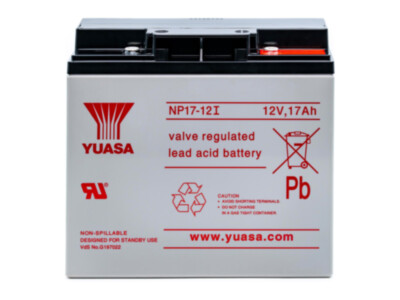

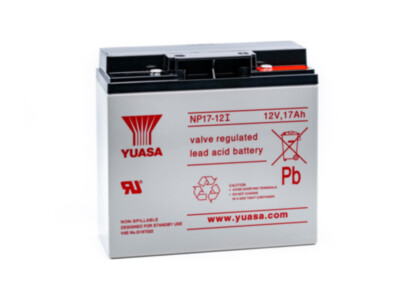

Yuasa NP17-12I is a 12 V 17 Ah maintenance-free valve-regulated lead-acid (VRLA) battery built with AGM technology. It is designed primarily for standby use in intruder and fire alarm systems, UPS and emergency lighting, and is also suitable for light cyclic use. Dimensions 181 × 76 × 167 mm, weight 6.1 kg, terminals: M5 female thread. The battery is VdS approved (Germany, no. G197022).

Key features

Design life up to 5 years at 20 °C, EUROBAT “Standard Commercial” classification 3–5 years
AGM technology: the electrolyte is held in a glass-fibre separator
Sealed construction prevents electrolyte leakage; maintenance-free, but regular inspection and testing are required
99% of the gas generated in normal use is recombined; a low-pressure valve releases excess gas on overcharge
Excellent recovery from deep discharge
Lead-calcium grids and high energy density for a long service life
Low self-discharge (approx. 3% per month at 20 °C) for a long shelf life
Can be installed at up to 90° from upright

Technical data

Nominal voltage	12 V
Capacity (20 h)	17 Ah
Capacity (10 h)	15.7 Ah
Technology	VRLA / AGM
Terminals	M5 female thread
Dimensions (L × W × H)	181 × 76 × 167 mm
Weight	6.1 kg
Case material	ABS (UL94:HB)
Float charge voltage (20 °C)	13.65 V ±1%
Cyclic charge voltage (20 °C)	14.5 V ±3%
Charge current limit	4.25 A
Max discharge current	500 A (1 s), 150 A (1 min)
Internal resistance (1 kHz)	15 mΩ
Operating temperature	charge −15 to +50 °C, discharge −20 to +60 °C
Storage temperature	−20 to +60 °C
Self-discharge	approx. 3% per month (20 °C)
Design life	up to 5 years (20 °C); EUROBAT 3–5 years
Approvals	VdS G197022, UL
