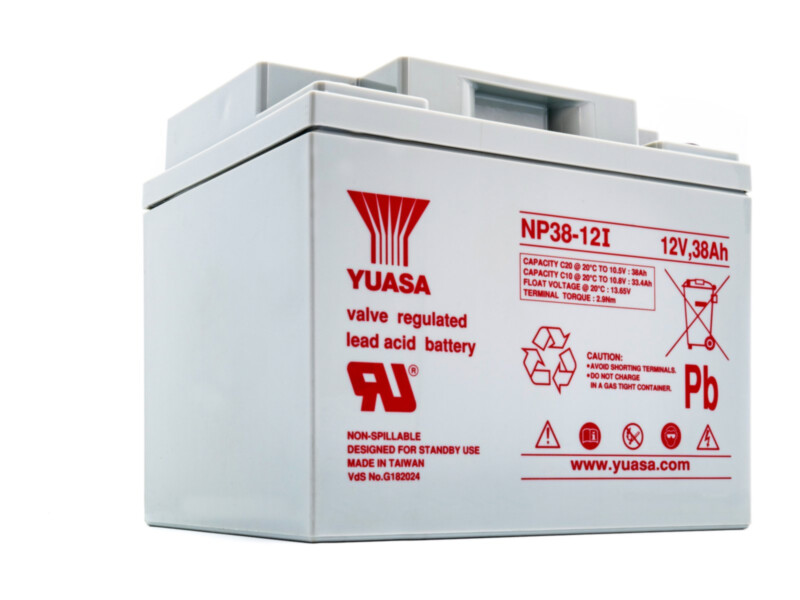

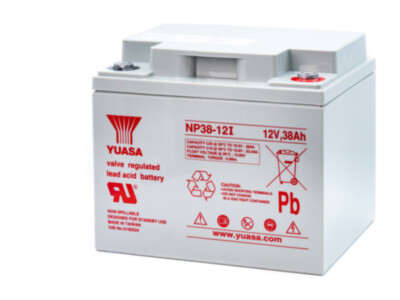

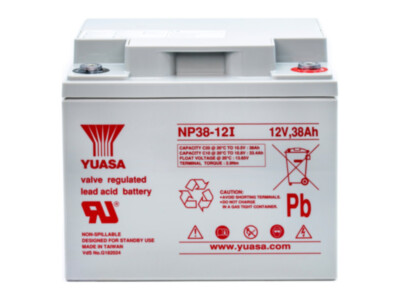

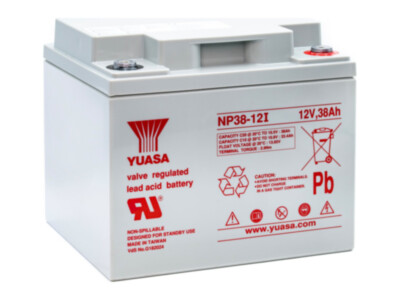

Yuasa NP series battery | 38 Ah | 12 V | 197×165×170 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€134.43 €167

In stock 7

SKU

NP38-12I

Product files

Datasheet

Product details

Product parameters
Capacity	20–50 Ah
Manufacturer	Yuasa
Length	197
Width	165
Height	170

Toote kirjeldus

Yuasa NP38-12I is a 12 V 38 Ah maintenance-free valve-regulated lead-acid (VRLA) battery built with AGM technology. It is designed primarily for standby use in intruder and fire alarm systems, UPS and emergency lighting, and is also suitable for light cyclic use. Dimensions 197 × 165 × 170 mm, weight 13.7 kg, terminals: M5 female thread. The battery is VdS approved (Germany, no. G182024).

Key features

Design life up to 5 years at 20 °C, EUROBAT “Standard Commercial” classification 3–5 years
AGM technology: the electrolyte is held in a glass-fibre separator
Sealed construction prevents electrolyte leakage; maintenance-free, but regular inspection and testing are required
99% of the gas generated in normal use is recombined; a low-pressure valve releases excess gas on overcharge
Excellent recovery from deep discharge
Lead-calcium grids and high energy density for a long service life
Low self-discharge (approx. 3% per month at 20 °C) for a long shelf life
Can be installed at up to 90° from upright

Technical data

Nominal voltage	12 V
Capacity (20 h)	38 Ah
Capacity (10 h)	35.3 Ah
Technology	VRLA / AGM
Terminals	M5 female thread
Dimensions (L × W × H)	197 × 165 × 170 mm
Weight	13.7 kg
Case material	ABS (UL94:HB)
Float charge voltage (20 °C)	13.65 V ±1%
Charge current limit	9.5 A
Max discharge current	500 A (1 s), 200 A (1 min)
Operating temperature	charge −15 to +50 °C, discharge −20 to +60 °C
Storage temperature	−20 to +60 °C
Self-discharge	approx. 3% per month (20 °C)
Design life	up to 5 years (20 °C); EUROBAT 3–5 years
Approvals	VdS G182024, UL
