Yuasa NP series battery | 65 Ah | 12 V | 350×166×174 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€250.00 €310

In stock 4

SKU

NP65-12

Product files

Datasheet

Product details

Product parameters
Capacity	over 50 Ah
Manufacturer	Yuasa
Length	350
Width	166
Height	174

Toote kirjeldus

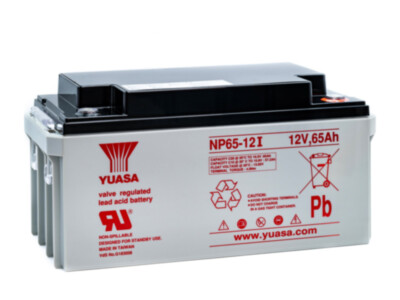

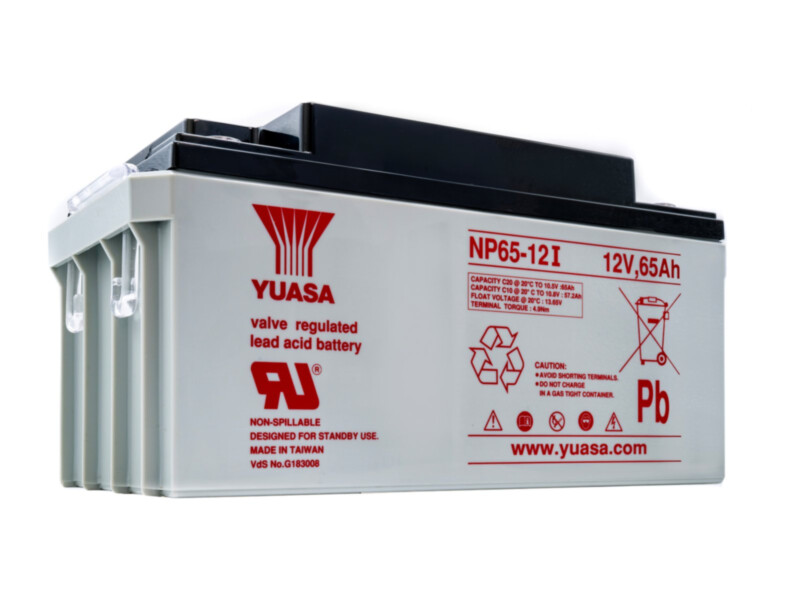

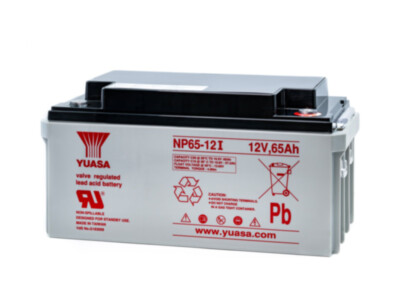

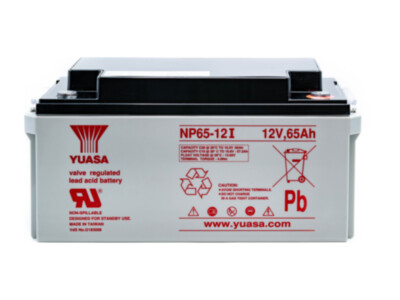

Yuasa NP65-12 is a 12 V 65 Ah maintenance-free valve-regulated lead-acid (VRLA) battery built with AGM technology. It is designed primarily for standby use in intruder and fire alarm systems, UPS and emergency lighting, and is also suitable for light cyclic use. Dimensions 350 × 166 × 174 mm, weight 21.4 kg, terminals: M6 female thread. The manufacturer's current designation is NP65-12I. The battery is VdS approved (Germany, no. G183008).

Key features

Design life up to 5 years at 20 °C, EUROBAT “Standard Commercial” classification 3–5 years
AGM technology: the electrolyte is held in a glass-fibre separator
Sealed construction prevents electrolyte leakage; maintenance-free, but regular inspection and testing are required
99% of the gas generated in normal use is recombined; a low-pressure valve releases excess gas on overcharge
Excellent recovery from deep discharge
Lead-calcium grids and high energy density for a long service life
Low self-discharge (approx. 3% per month at 20 °C) for a long shelf life
Can be installed at up to 90° from upright

Technical data

Nominal voltage	12 V
Capacity (20 h)	65 Ah
Capacity (10 h)	60.5 Ah
Technology	VRLA / AGM
Terminals	M6 female thread
Dimensions (L × W × H)	350 × 166 × 174 mm
Weight	21.4 kg
Case material	ABS (UL94:HB)
Float charge voltage (20 °C)	13.65 V ±1%
Charge current limit	16.25 A
Max discharge current	800 A (1 s), 500 A (1 min)
Operating temperature	charge −15 to +50 °C, discharge −20 to +60 °C
Storage temperature	−20 to +60 °C
Self-discharge	approx. 3% per month (20 °C)
Design life	up to 5 years (20 °C); EUROBAT 3–5 years
Approvals	VdS G183008, UL
