ZE-500 electromagnetic lock with brackets | 500 kg | 12/24 V DC | door status output NO/NC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€130.32 €162

Pre-order

SKU

ZE-500

Toote kirjeldus

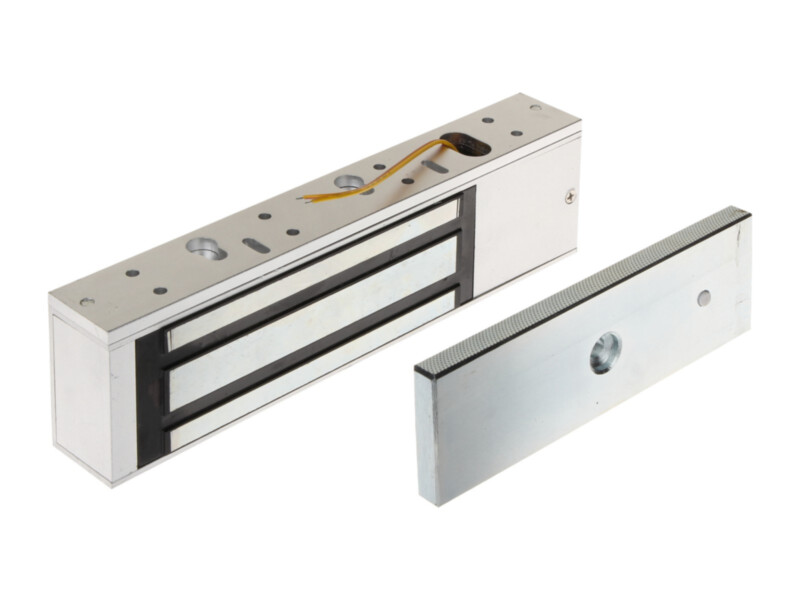

The ZE-500 is a surface-mounted single electromagnetic lock for doors and gates; forcing a locked door requires more than 500 kg. It works fail-safe – open when there is no power – and consists of the electromagnet (usually on the frame) and the armature plate (usually on the door). Power 12 V DC or 24 V DC, LED indicator and a NO/NC output that signals the door opening. Supplied with the BZE-500 aluminium Z and L brackets for mounting the lock in an LZ arrangement.

Key features

Holding force 500 kg
12 V DC / 24 V DC, 530 mA
LED indicator, NO/NC door status output
Open without power (fail-safe)

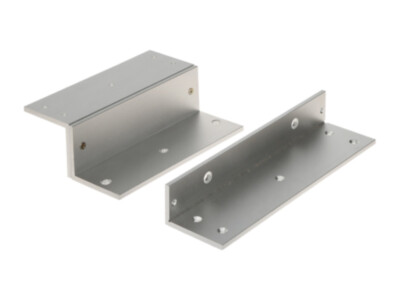

BZE-500 Z and L brackets included

Technical data

Holding force	500 kg
Supply voltage	12 V DC / 24 V DC
Current consumption	530 mA
Outputs	NO/NC (door opening)
Dimensions	lock 266 × 73 × 55 mm; Z bracket 185 × 140 × 61/75 mm; L bracket 265 × 72 × 45 mm
Weight	lock 3.9 kg; brackets 1.13 kg
In the box	ZE-500 lock, BZE-500 Z and L brackets (aluminium)
