Zeta disabled toilet alarm kit with relay output | 1 toilet, expandable to 4

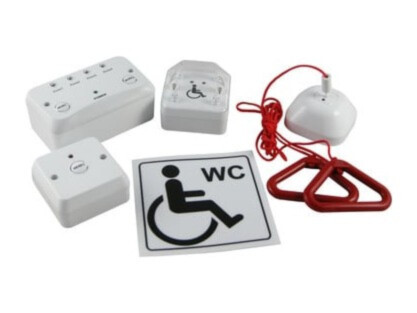

The Zeta DPTA-KIT1/R is a single-toilet alarm kit whose control panel has a relay output for passing the alarm on to another system. The kit holds the control panel with relay output, a ceiling-mounted pull cord (DPTA-PC), a remote reset (DPTA-RR), a remote indicator with LED and buzzer (DPTA-RI) and a disabled toilet sticker (DPTA-S). The panel supports up to 4 zones, so the system can later be extended to four toilets by adding a pull cord, reset and indicator per toilet. The control panel is powered from 230 V AC 50/60 Hz and accepts a 12 V battery back-up (charging voltage 13.8 V, deep discharge protection below 10.5 V; battery saver mode). Standby current 3 mA (buzzer muted), maximum supply current 250 mA. The front has Silence, Reset (all zones) and zone 1–4 reset buttons, a green mains LED and a red alarm LED per zone (1 Hz flashing); built-in piezo buzzer (1 kHz). The panel supplies the field devices with 12 V DC ± 10%. Fire-retardant polycarbonate housing, surface or flush mounting. The Zeta disabled toilet alarm system (DPTA) is designed for disabled persons' toilets and meets the requirements of British Standard BS 8300: a pull cord in the toilet raises the alarm, an indicator outside the toilet gives a light and sound signal, and the carer cancels the alarm with the reset button in the toilet. One control panel serves up to 4 toilets (one zone per toilet); all field devices use a simple 3-wire connection (positive, negative, signal).

Key features

• Kit for 1 toilet, expandable to 4
• Control panel with relay output
• Pull cord, remote reset, indicator, sticker
• 230 V AC + 12 V battery back-up
• 3-wire connection
• BS 8300

Technical data
