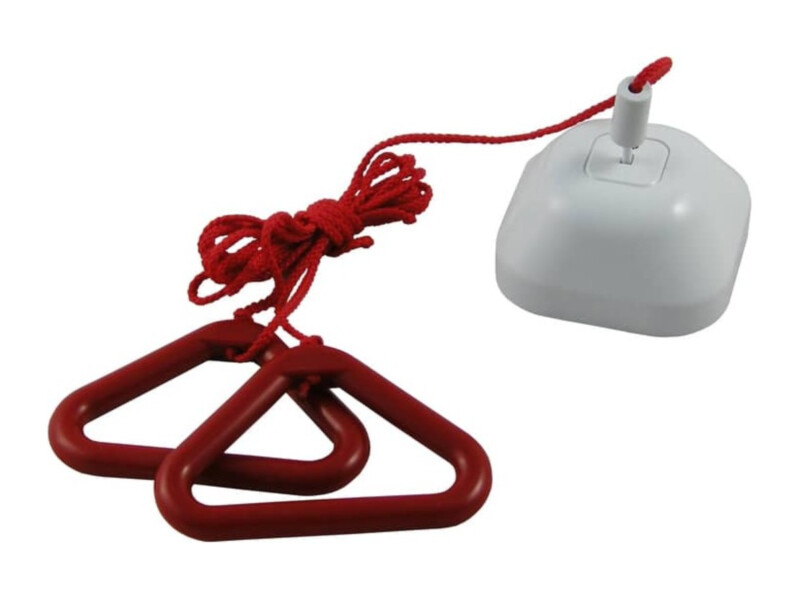

Zeta disabled toilet alarm pull cord | ceiling mount, 12 V DC

The DPTA-PC is the "call device" of the Zeta disabled toilet alarm – a ceiling-mounted pull cord with which a person in need of help raises the alarm. Pulling the cord puts the system into alarm, the remote indicator (DPTA-RI) by the toilet door lights up and sounds, and the LED on the front of the pull cord lights in sympathy with the system. Supply 12 V DC from the control panel, 0 mA standby, up to 15 mA in alarm. White ABS housing, red handles. The Zeta disabled toilet alarm system (DPTA) is designed for disabled persons' toilets and meets the requirements of British Standard BS 8300: a pull cord in the toilet raises the alarm, an indicator outside the toilet gives a light and sound signal, and the carer cancels the alarm with the reset button in the toilet. One control panel serves up to 4 toilets (one zone per toilet); all field devices use a simple 3-wire connection (positive, negative, signal).

Key features

• Raises the alarm when the cord is pulled
• Ceiling mount, LED indication
• 12 V DC, 0 mA standby, max 15 mA in alarm
• 3-wire connection
• BS 8300
