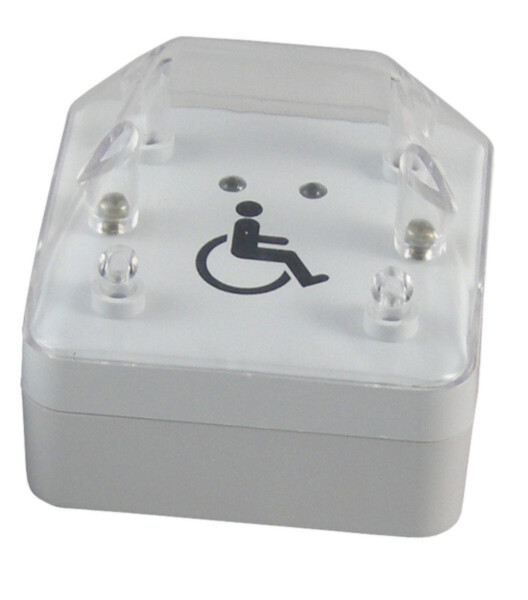

Zeta disabled toilet alarm remote indicator | LED and buzzer, 12 V DC

The DPTA-RI is the warning device of the Zeta disabled toilet alarm – usually mounted on the wall by the toilet door, it alerts staff that someone needs help. The housing holds a visual indicator and a built-in buzzer. Surface or flush mounting. Supply 12 V DC from the control panel, 0 mA standby, up to 30 mA in alarm. White ABS housing. The Zeta disabled toilet alarm system (DPTA) is designed for disabled persons' toilets and meets the requirements of British Standard BS 8300: a pull cord in the toilet raises the alarm, an indicator outside the toilet gives a light and sound signal, and the carer cancels the alarm with the reset button in the toilet. One control panel serves up to 4 toilets (one zone per toilet); all field devices use a simple 3-wire connection (positive, negative, signal).

Key features

• Light and sound signal in alarm
• Built-in buzzer
• Surface or flush mounting
• 12 V DC, 0 mA standby, max 30 mA in alarm
• 3-wire connection
