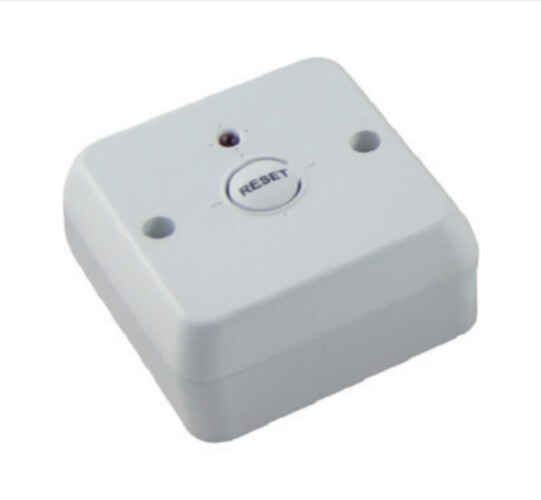

Zeta disabled toilet alarm remote reset | 12 V DC, LED indication

The DPTA-RR is the reset device of the Zeta disabled toilet alarm – usually a wall-mounted push button in the toilet with which the carer cancels the alarm. The LED on the front lights in sympathy with the system. Surface or flush mounting. Supply 12 V DC from the control panel, 0 mA standby, up to 15 mA in alarm. White ABS housing. The Zeta disabled toilet alarm system (DPTA) is designed for disabled persons' toilets and meets the requirements of British Standard BS 8300: a pull cord in the toilet raises the alarm, an indicator outside the toilet gives a light and sound signal, and the carer cancels the alarm with the reset button in the toilet. One control panel serves up to 4 toilets (one zone per toilet); all field devices use a simple 3-wire connection (positive, negative, signal).

Key features

• Cancels the alarm with a push
• LED indication
• Surface or flush mounting
• 12 V DC, 0 mA standby, max 15 mA in alarm
• 3-wire connection
