Morley kahe sisendiga moodul

Skip to the end of the images gallery

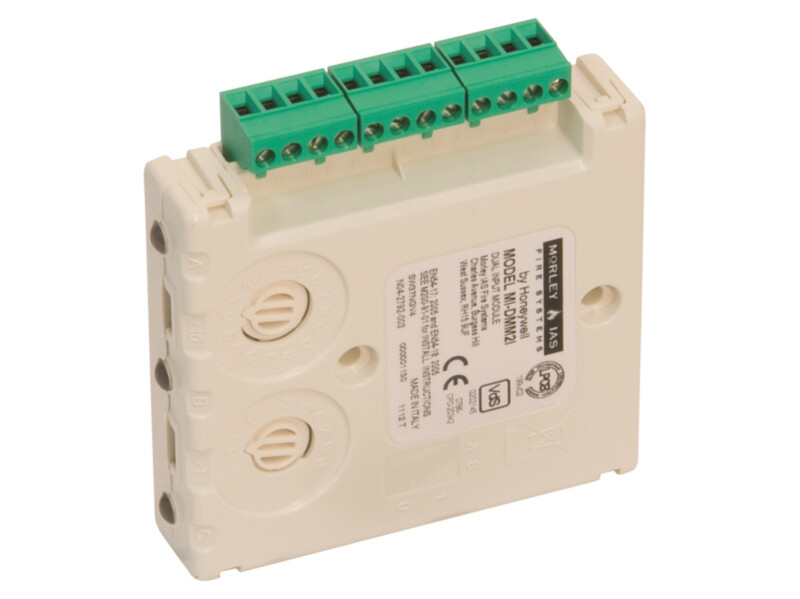

Morley kahe sisendiga moodul

Skip to the beginning of the images gallery

66,70 € 81 €

Saadavus: 8

SKU

MI/DMM2IE

Toote failid

Andmeleht

Toote kirjeldus

Dual input
DIN rail mounting option
Rotary decade address switch
Analogue addressable communications
Tri-color LED status
Plug-in connectors
Built-in short circuit isolators
Specifications: EN54-17, EN54-18
LPCB, GEA approved

Operating voltage	15 ... 30 V DC
Dimension	H: 93 mm W: 94 mm D: 23 mm
Weight	110 g
Ingress protection	IP30 (IP50 in M200E-SMB)
Temperature range	-20°C ... 60°C
Max. wire guage	2.5 sqmm
Quiescent current	340 uA @ 24 V DC (no communications) 600 uA @ 24 V DC (LED blink enabled)
Relative humidity	0 ... 95% (non-condensing)
