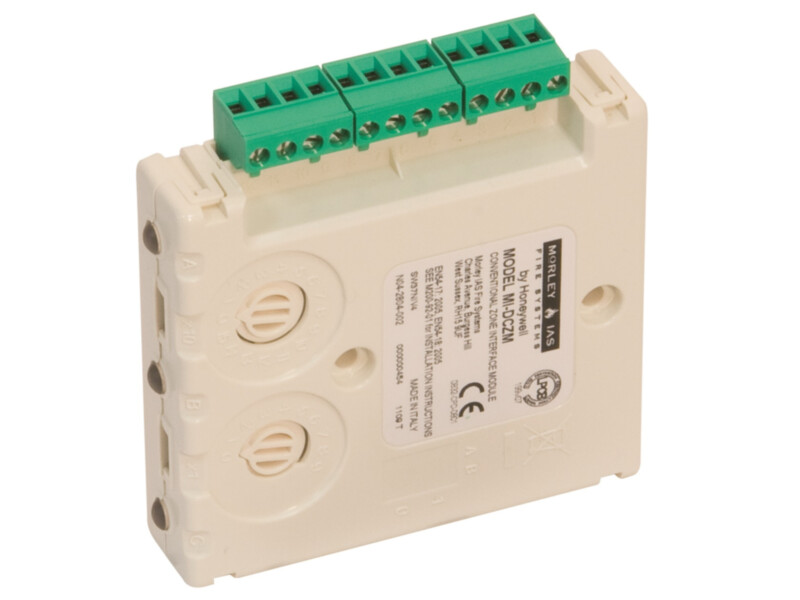

Morley konventsionaalse tsooni moodul

143,10 € 175 €

Ettetellitav

SKU

MI/DCZRM

Toote kirjeldus

Connection of a zone of non-addressable detectors to an analogue addressable fire system
Built in isolation allowing system installation in stages without loss of protection
Rotary decade address switches
Monitors open circuit and short circuit faults
TRI-Color Status LED
Zone powered from addressable loop wiring or external 24V PSU
Remote reset of non-addressable zone
Compatible with most non-addressable detectors, IS non-addresable detectors
Monitoring of external power supply
External fault input
Specifications: EN54-17, EN54-18
LPCB approved
DIN rail mountable, consistent with all other modules
Support for an extended power supply range as low as 18Vdc 60mA with an External PSU

Operating voltage	18 ... 28.5 V DC
Dimension	H: 93 mm W: 83 mm D: 23 mm
Weight	110 g
Temperature range	-20°C ... 60°C
Quiescent current	375 uA @ 24 V DC
Relative humidity	5% ... 95% (non-condensing)
Max Standby current	288 uA (conventional Zone connected to external supply
End of line resistor	3.9 K
