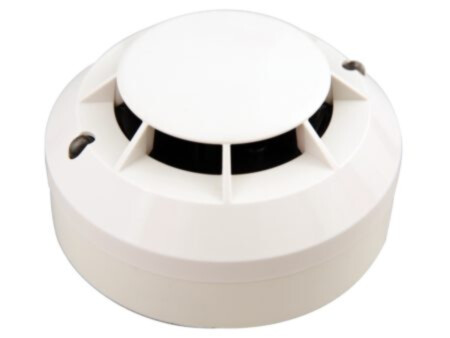

Morley optiline suitsuandur isolaatoriga

32,00 € 40 €

Saadavus: 150

SKU

HM/PSE/I

Toote parameetrid
Length	102
Height	52

Toote kirjeldus

Operating voltage	15 ... 28 V DC
Humidity range	10 ... 93% (non-condensing)
Dimension	ø: 102 mm (with base MI/B501AP/IV) H: 52 mm (with base MI/B501AP/IV)
Weight	97 g
Color	Ivory
Maximum standby current	200 uA @ 24 V DC (no LED blink) 300 uA @ 24 V DC (LED blink enabled)
Led current	3.5 mA @ 24 V DC
Remote output voltage	22.5 V DC @ 24 V DC input
Remote output current	10.8 mA @ 24 V DC
Temperature range	-30°C ... +70°C
Max. wire guage	2.5 sqmm
Material	PC / ABS
