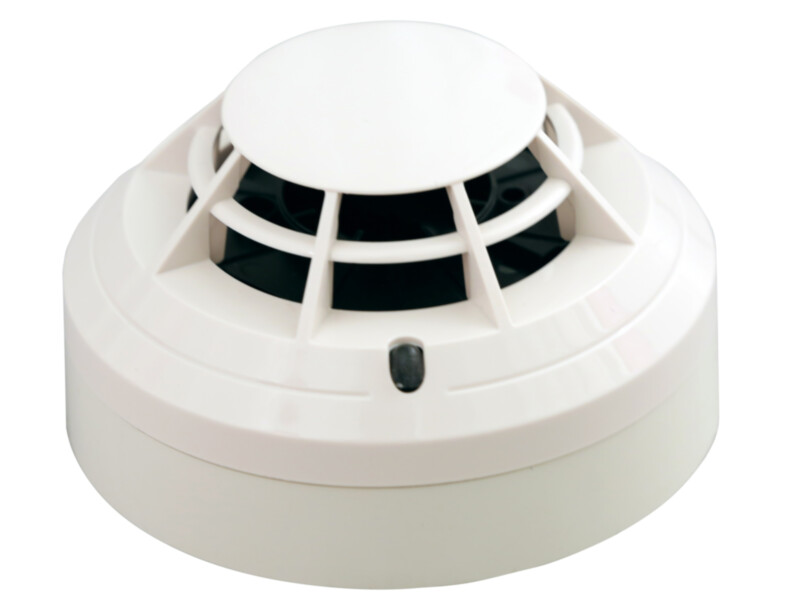

Morley optiline + temp. andur, klass A1R + Isolaator
43,10 €
53 €
Saadavus: 10
SKU
HM-PTSE-I-AP
Toote failid
Toote kirjeldus
- Genuine and fast response
- Advanced protocol and smoothing filter to suppress false alarm
- Rotary decade address switches
- Analog addressable communication
- Dual integrated LED for 360° visibility
- Specification: EN54-5 , EN54-7
- LPCB approved
- Environment friendly - meets RoHS legislative requirements
| Operating voltage | 15 ... 32 V DC |
| Humidity | 10 ... 93% (non-condensing) |
| Dimension | ø: 102 mm (with base MI/B501AP/IV) H: 61 mm (with base MI/B501AP/IV) |
| Weight | 99 g |
| Color | Ivory |
| Maximum standby current | 200 uA @ 24 V DC (no LED blink) 300 uA @ 24 V DC (LED blink enabled) |
| Led current | 3.5 mA @ 24 V DC |
| Remote output voltage | 22.5 V DC @ 24 V DC input |
| Remote output current | 10.8 mA @ 24 V DC |
| Temperature range | -30°C ... +70°C * |
| Max. wire guage | 2.5 sqmm |
| Material | PC / ABS |
