Morley ühe väljundiga moodul

Skip to the end of the images gallery

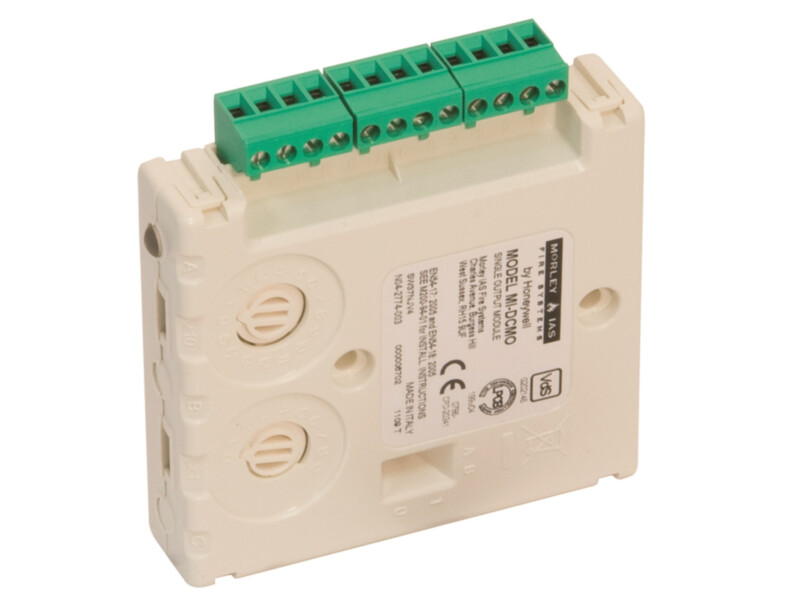

Morley ühe väljundiga moodul

Skip to the beginning of the images gallery

61,10 € 75 €

Ettetellitav

SKU

MI/DCMOE

Toote failid

Andmeleht

Toote kirjeldus

Single output - Relay or Sounder mode
DIN rail mounting option
Rotary decade address switches
Analogue addressable communications
Tri-color LED status
Plug-in connectors
Built-in short circuit isolators
Specifications: EN54-17, EN54-18
LPCB approved

Operating voltage	15 ... 30 V DC
Dimension	H: 93 mm W: 94 mm D: 23 mm
Weight	62 g
Ingress protection	IP30 (IP50 in M200E-SMB)
Temperature range	-20°C ... 60°C
Max. wire guage	2.5 sqmm
Quiescent current	310 uA @ 24 V DC (no communications) 510 uA @ 24 V DC (LED blink enabled)
Relative humidity	0 ... 95% (non-condensing)
Relay specification	unsupervised 2 A @ 30 V DC, resistive Load
