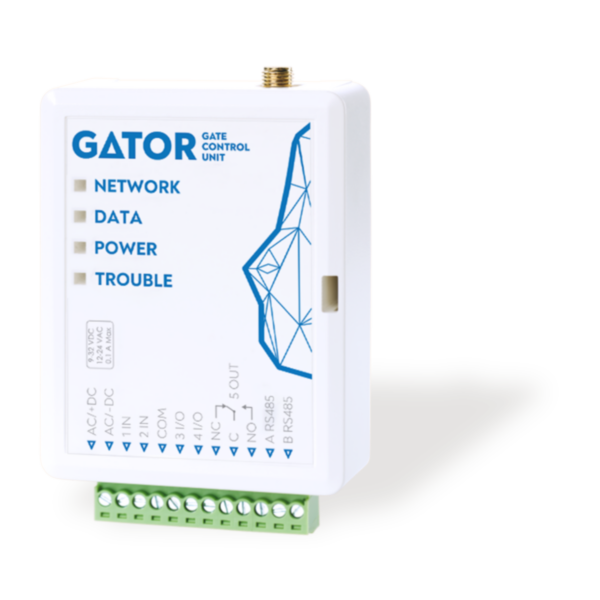

Trikdis GV17 GATOR värava kontroller 4G

Skip to the end of the images gallery

Trikdis GV17 GATOR värava kontroller 4G

Skip to the beginning of the images gallery

182,65 € 226 €

Saadavus: 4

SKU

GV17_4G

Toote andmed

Toote parameetrid
Length	95
Width	65
Height	25

Toote kirjeldus

Specifications

Power supply voltage	9-32 V DC, 12-24 V AC
Current consumption	50 mA (standby) Up to 200 mA (transmitting)
Relay	1 (1A 30 V DC, 0.5A 125 V AC)
Number of inputs and outputs	2 inputs 2 double purpose contacts for setting to either input or output (50mA) mode
Input type	NC, NO or EOL=10kΩ (settable)
Buffer for unsent events	Up to 60 events
Event log memory	Up to 5000 events
Users, who can control	Up to 997 users
Users, who can receive events by SMS	Up to 7 users
2G GSM modem frequencies	850 / 900 / 1800 / 1900 MHz
3G UMTS modem frequencies	800 / 850 / 900 / 1900 / 2100 MHz
Operating environment	Temperature from -20 °C to 50 °C, relative humidity up to 80% at +20 °C
Dimensions	65 x 77 x 25 mm
