Alarmtech MC 270-S68 põrandale paigaldatav magnetkontakt | G3 | 6m kaabel | takistid 2x2,2k

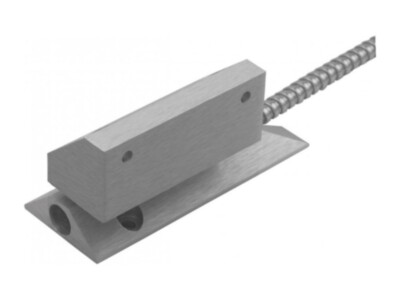

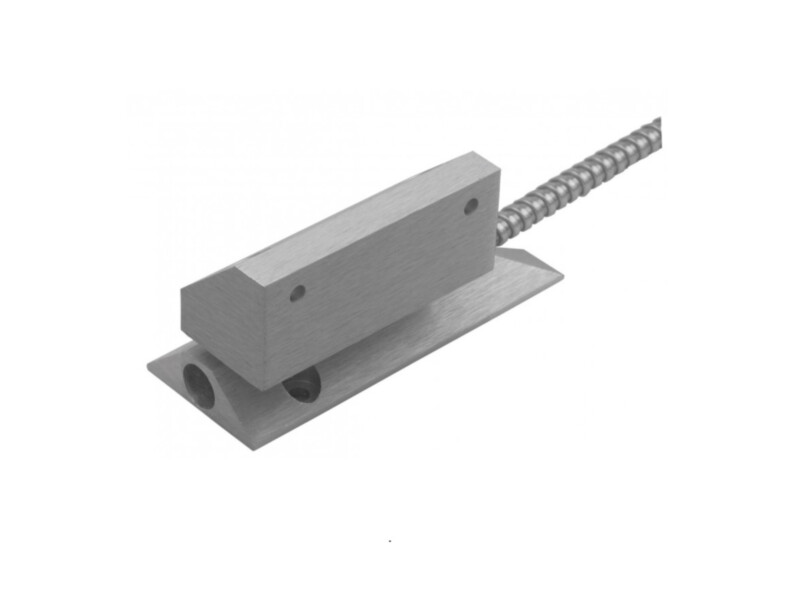

The MC 270-S68 set is intended for exposed environments where a more durable high security contact is needed, such as garage doors, industrial gates of folding or overhead type, etc. The set consists of MC 270-C contact with NC contact function installed in MC 200-6 Al housing and an extra strong magnet in MC 200-8 Al housing, which allows for a wide opening gap. The part to be installed to the floor can bear the weight of a vehicle. MC 270-S68 set contains a 1 m long stainless steel Flexi-tube protection (MC T4). Contact and magnet are paired. To ensure proper functionality, do not replace the contact or magnet alone. With appropriate accessories, the contact can even be installed in steel doors, safety valves, garage doors, etc. The contact part is sealed with special epoxy, making it water resistant.

Data sheet

Installation method

Surface mount

Contact function

Normally Closed (NC)

Approvals

EN 50131-2-6 Grade 3, Class IIIA, VdS G 116030 Class C, SBSC 9-205, Class 3/4, F&P, NBÚ CZ Typ 3, NBÚ SK Typ 3

Contact rating

48 VDC / 500 mA / 10 VA

Mounting on steel

Possible without accesorries

Make distance (wood) mm

36

Sabotage distance (wood) mm

20

Make distance (steel) mm

30

Sabotage distance (steel) mm

17

Tamper protection

Yes

Connection

Cable

Housing material

Aluminium

Operating temperature range

-40°C – +70°C

Housing protection class

IP 67

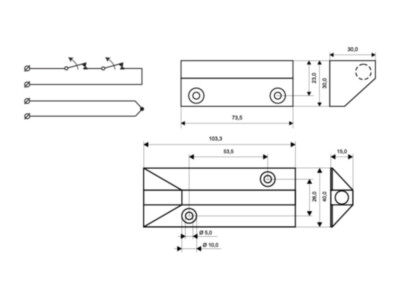

Contact dimensions (L x W x H) mm

104 x 40 x 15

Magnet dimensions (L x W x H) mm

74 x 30 x 30

Grade

3
