Alarmtech MC 370-S12-10 süvistatav magnetkontakt | IP67 | G3 | 10m kaabel

Skip to the end of the images gallery

Skip to the beginning of the images gallery

49,70 € 62 €

Ettetellitav

SKU

E6332799

Toote failid

Andmeleht

Toote andmed

Toote parameetrid
Tootja	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	Jah
Paigaldusviis	Süvis

Toote kirjeldus

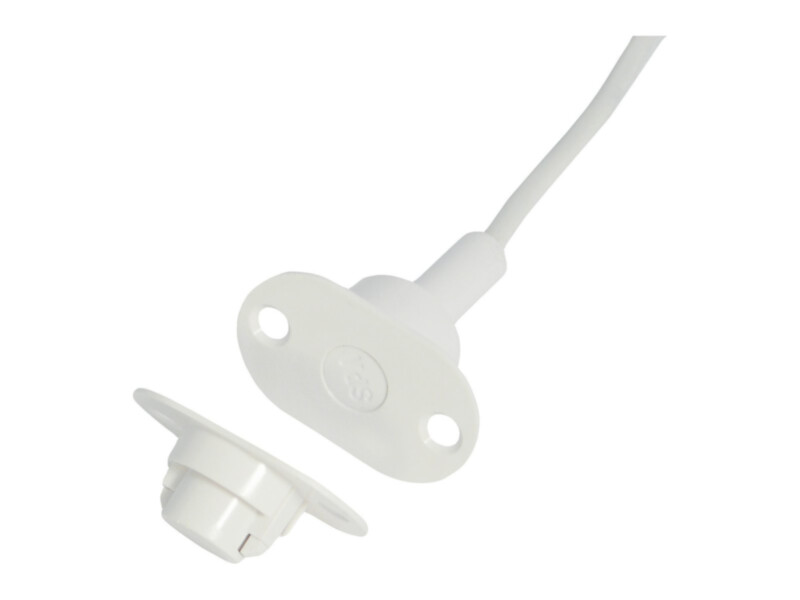

MC 370-S11 is a high security magnetic contact set with NC function that can be used in both alarm and access control systems for monitoring doors and windows against unauthorized opening. The contact is specially designed for use in banks, museums, art galleries, stores, etc. This set includes MC 370 and the plastic adapter set MC 300-S11 for recessed installation with screws in non-magnetic door and window frames. Both the contact and the magnet part are in a water proof (IP 67) plastic housing, which enables easy installation in wood without additional accessories. Contact and magnet are paired. To ensure proper functionality, do not replace the contact or magnet alone.

Data sheet

Installation method: Recessed mounting
Contact function: Normally Closed (NC)
Approvals: EN 50131-2-6 Grade 3, Class IIIA, VdS G 197064 Class C, INCERT B-582-0013, SBSC 9-207, Class 3/4, FG, NBÚ CZ Typ 3, NBÚ SK Typ 3
Contact rating: 48 VDC / 500 mA / 10 VA
Drill diameter mm: 8
Magnet type: Alnico 5
Mounting on steel: Only with accessories
Make distance (wood) mm: 16
Sabotage distance (wood) mm: 5
Make distance (steel) mm: X
Tamper protection: Yes
Connection: Cable
Housing material: ABS Plastic
Colour: White
Operating temperature range: -40°C – +70°C
Housing protection class: IP 67

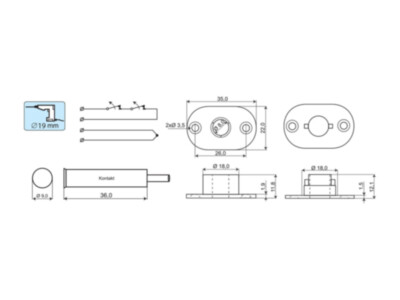

Contact dimensions (L x Ø) mm: 36 x 9
Magnet dimensions (L x Ø) mm: 14 x 9
Grade: 3

Omadused

MC 370 kontakt + MC 300-S12 adapterid
EN 50131-2-6 Grade 3, VdS klass C
Paaristatud kontakt ja magnet
IP67, −40…+70 °C

Tehnilised andmed

Kaabli pikkus	10 m
Sertifikaadid	Class 3/4,FG, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-1003, NBÚ CZ Typ 3, NBÚ SK Typ 3, SBSC 9-207, VdS G 197064 Class C
Kontakti koormus	48 VDC / 500 mA / 10 VA
Töötemperatuur	-40°C – +70°C
Korpuse kaitseaste	IP 67
Ava läbimõõt, mm	8
Rakendumiskaugus (puit), mm	16
Rakendumiskaugus (teras), mm	–
Kontakti mõõdud (P × Ø), mm	36 x 9
Magneti mõõdud (P × Ø), mm	14 x 9
Tamperkaugus (puit), mm	5
Grade (EN 50131)	Grade 3
